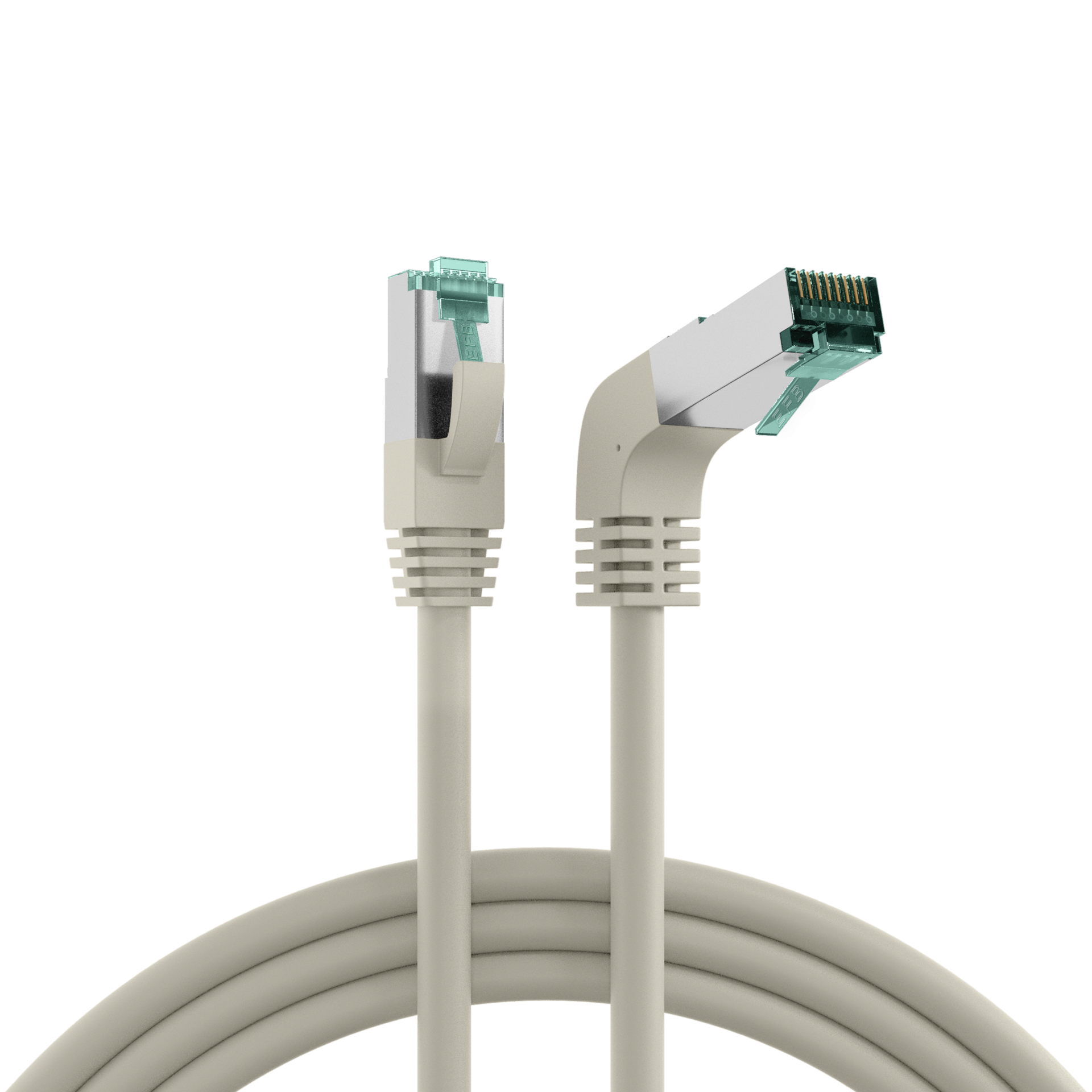

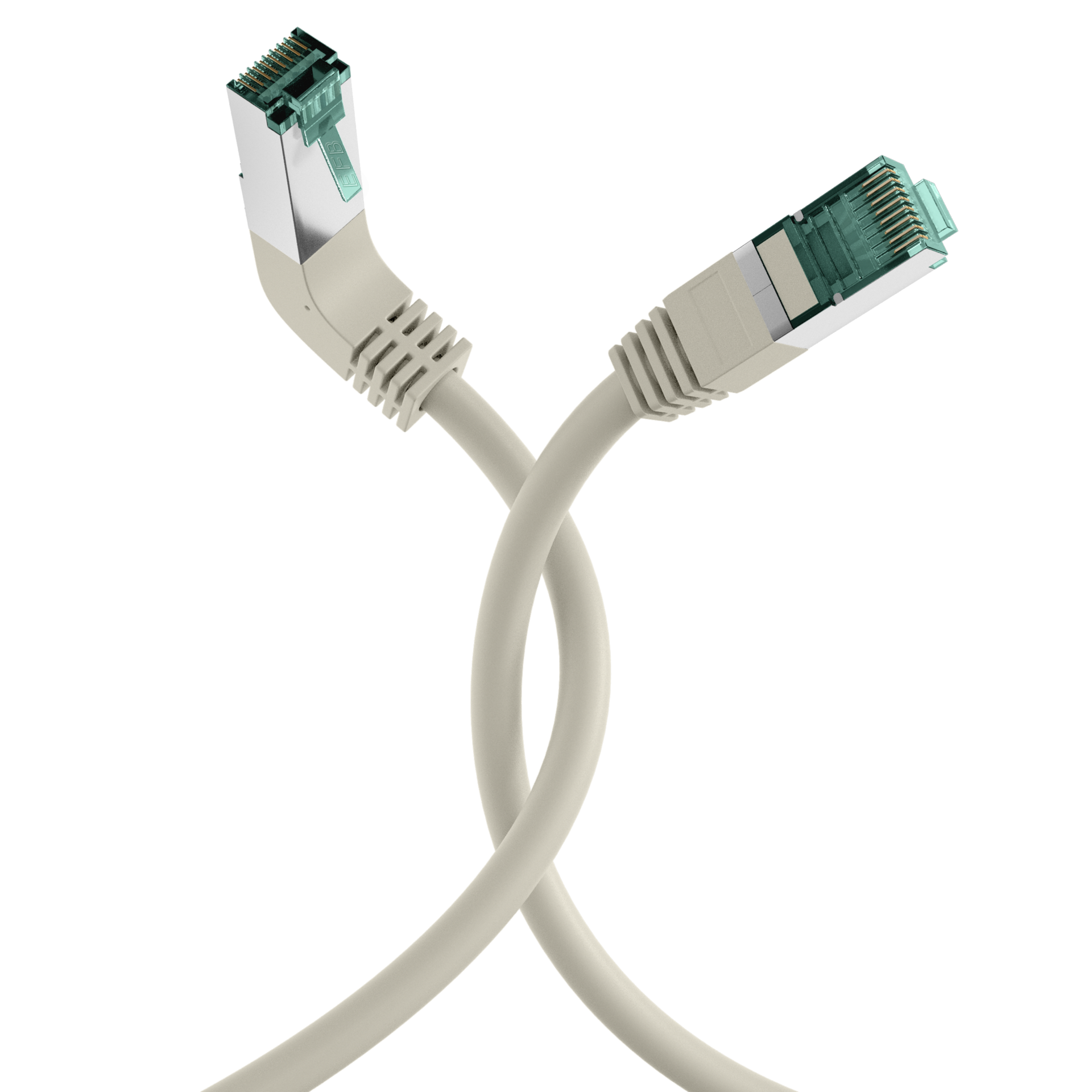

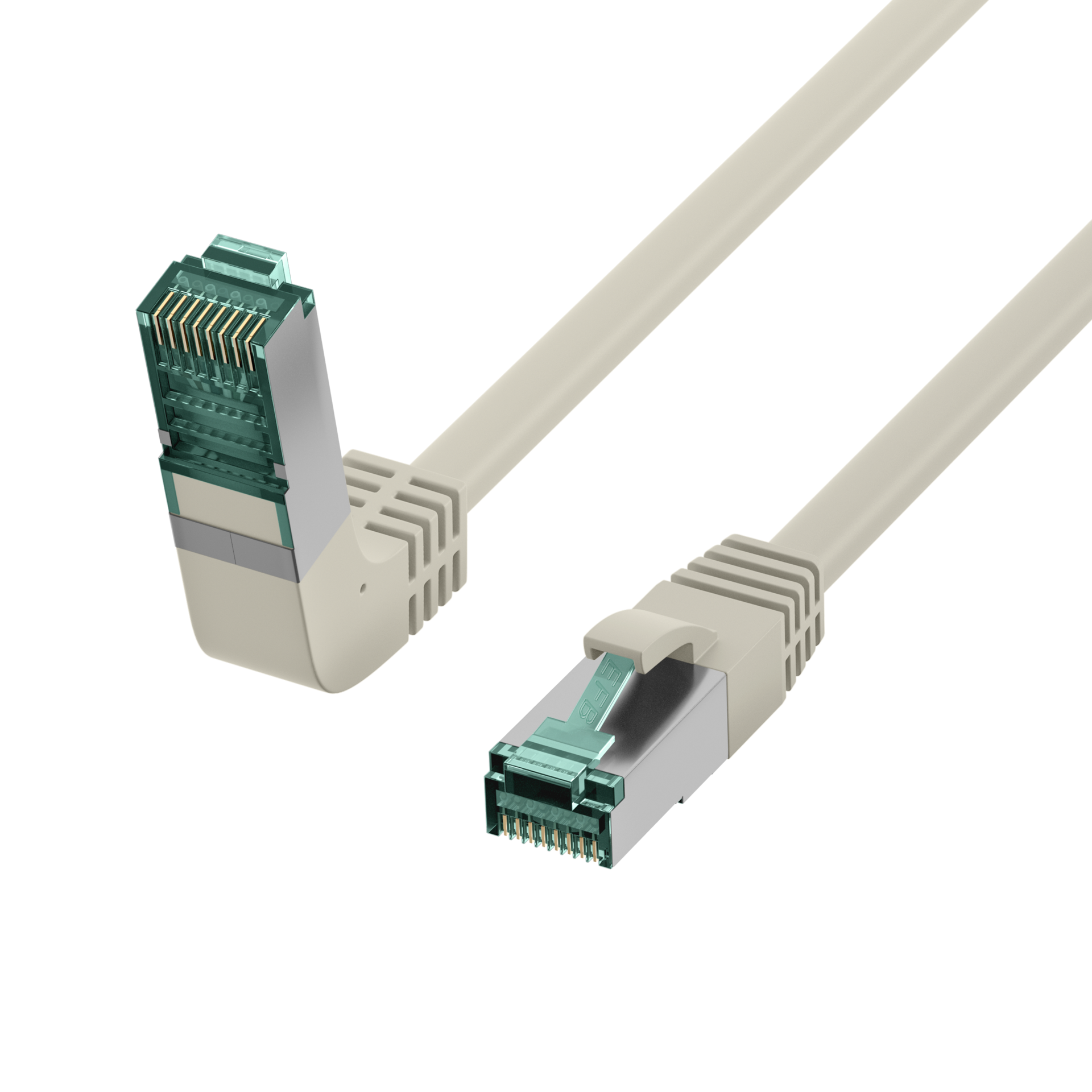

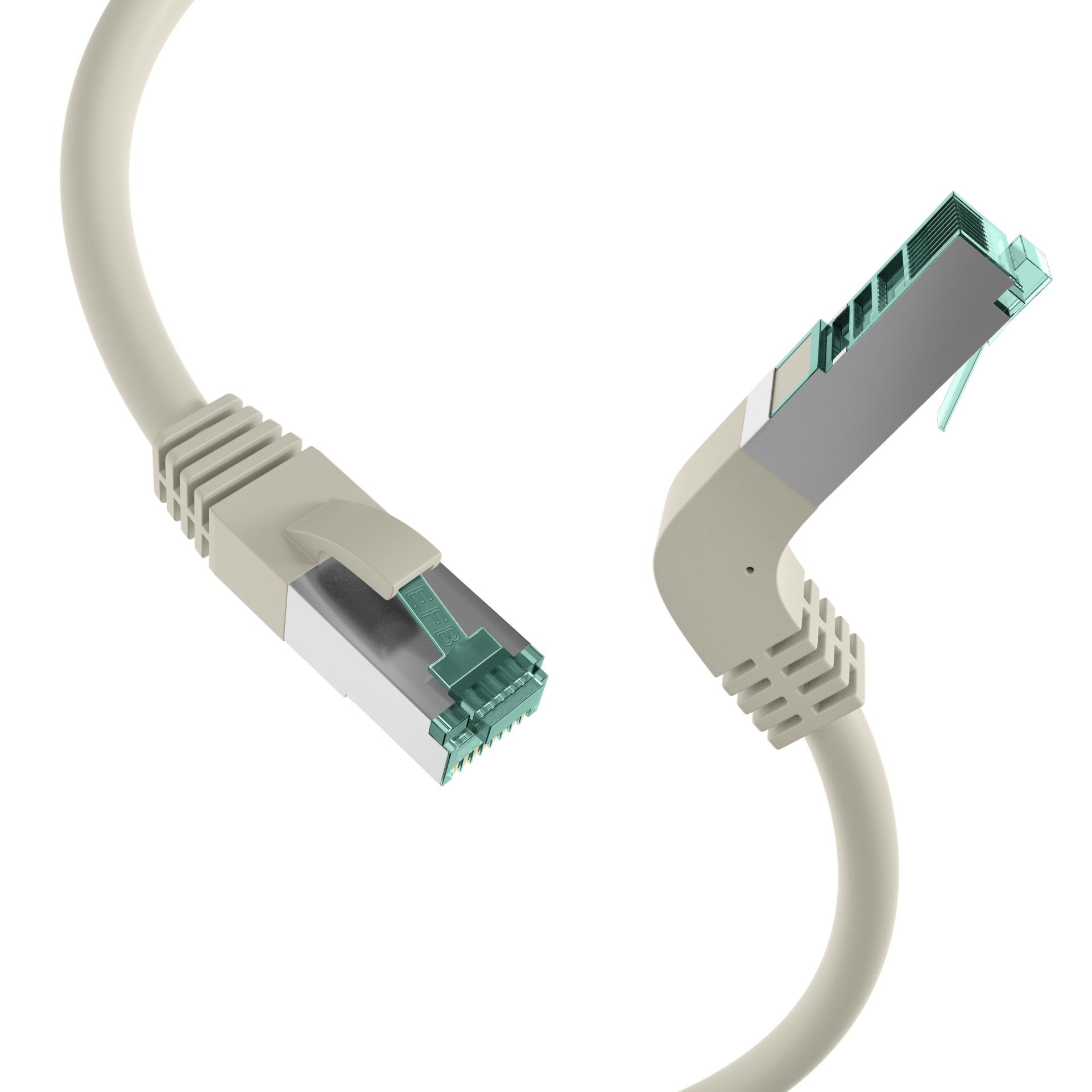

RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey
RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 2m
Item number:
MK6001W.2G
EAN no.:
4049759266097
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 2m
RJ45 patch cable Cat.6A S/FTP LSZH 1x90°
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product properties< br>• Cat.6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45< br>• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is 1:1 and follows TIA/ EIA 568B. Suitable for the temperature range -20 – 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit, 5Gbit and 10Gbit Ethernet as a transmission standard.
Technical product properties< br>• Cat.6A (TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45< br>• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the blue RJ45 plugs is 1:1 and follows TIA/ EIA 568B. Suitable for the temperature range -20 – 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The frequency range is 500 MHz.
Technical properties
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard blue |
| Contact Resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame retardant: | True |
| Halogen-free: | True |
| Halogen free: | True |
| Impedance: | 100 ±15 Ω |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 74 % |
| Oil resistant: | False |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0 mm |
| Ozone resistance: | False |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.6A |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: |
2.5Gbit 5Gbit 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UV resistance: | False |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| MK6001W.0,25G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 0,25m | 0.25 m | ±5 % | |
| MK6001W.0,5G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 0,5m | 0.5 m | ±5 % | |
| MK6001W.1G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 1m | 1.0 m | ±5 % | |
| MK6001W.2G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 2m | 2.0 m | ±5 % | |
| MK6001W.3G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 3m | 3.0 m | ±5 % | |
| MK6001W.5G | RJ45 Patch Cord Cat.6A S/FTP LSZH 1x90° grey 5m | 5.0 m | ±5 % |
