RJ45 Patch Cord Cat.6A S/FTP LSZH red

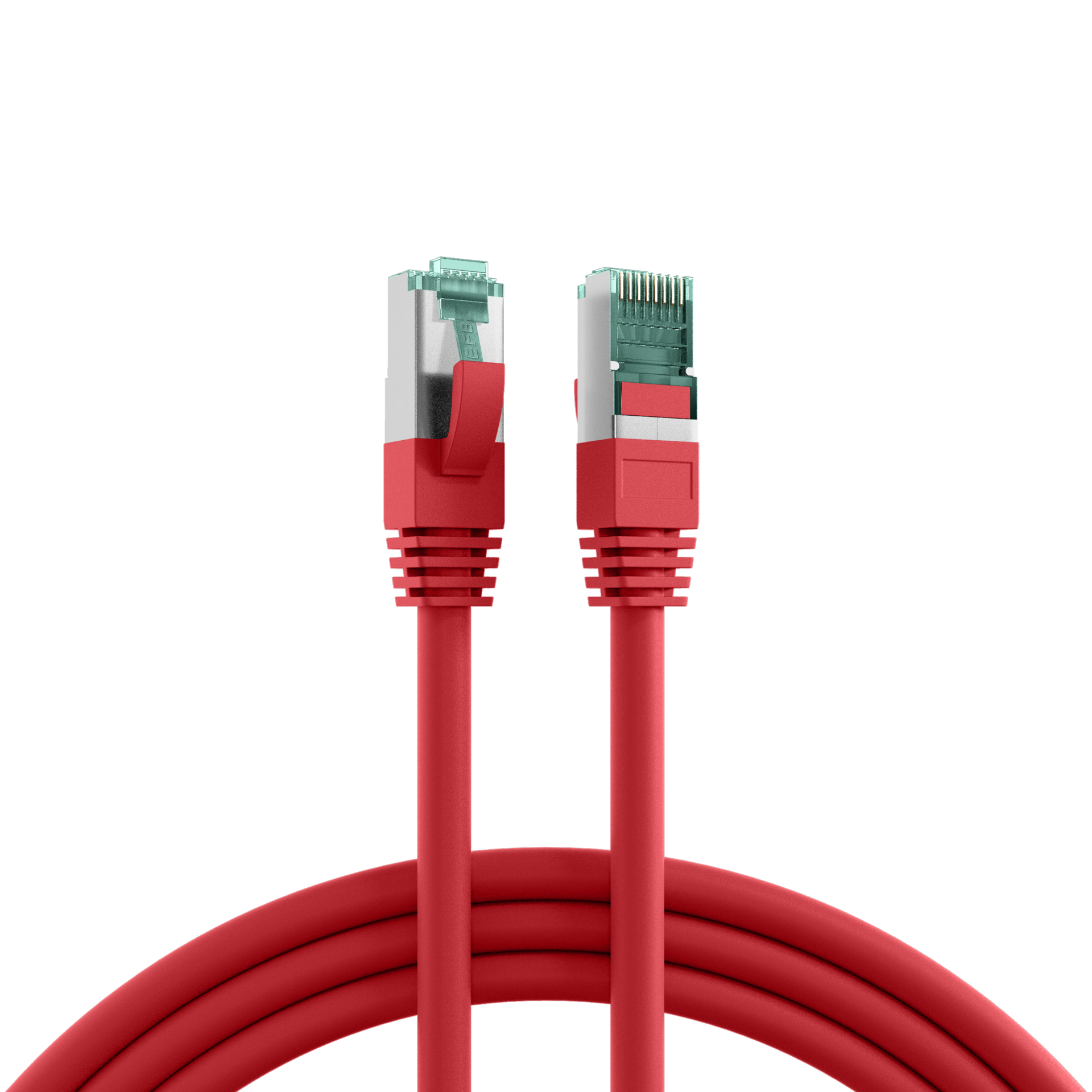

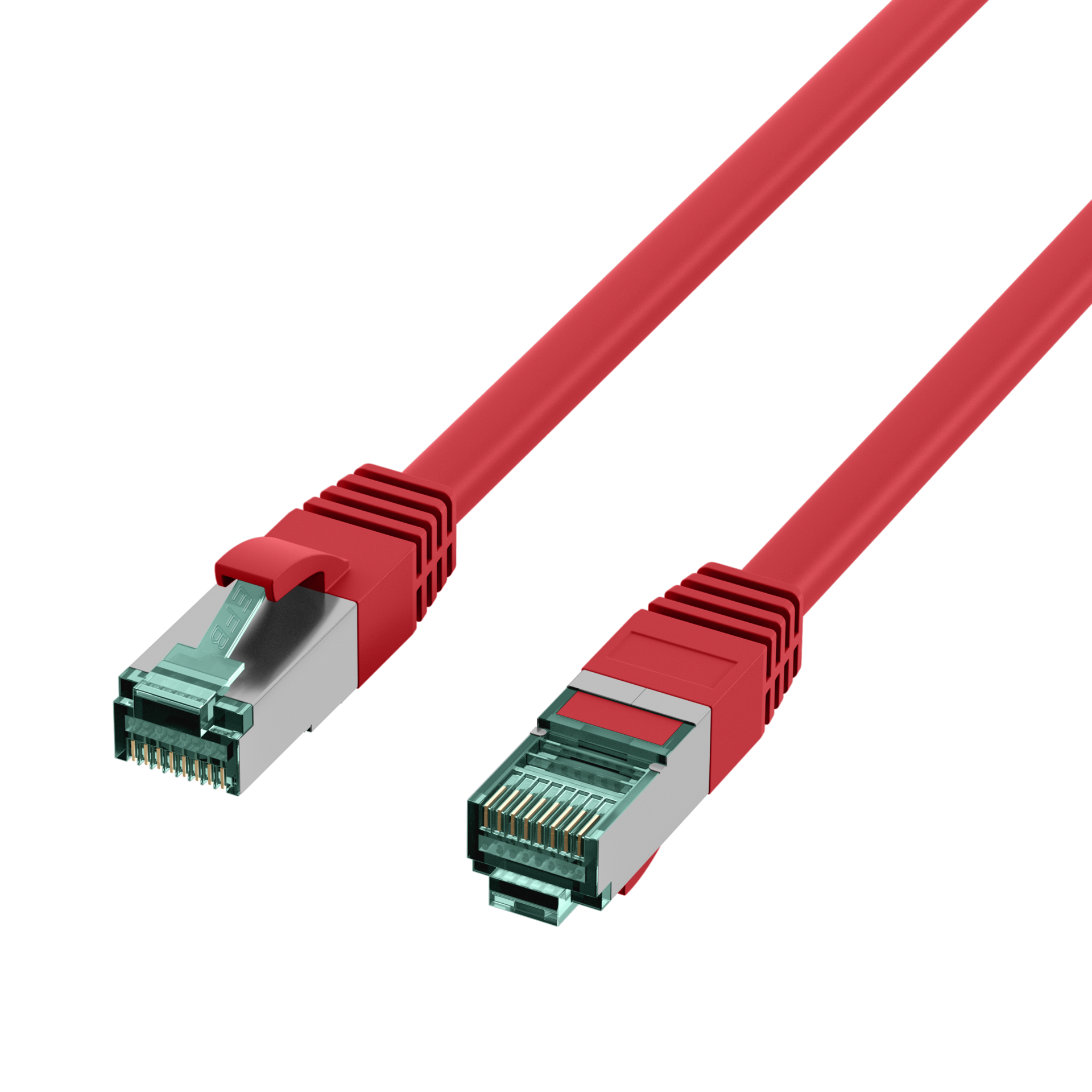

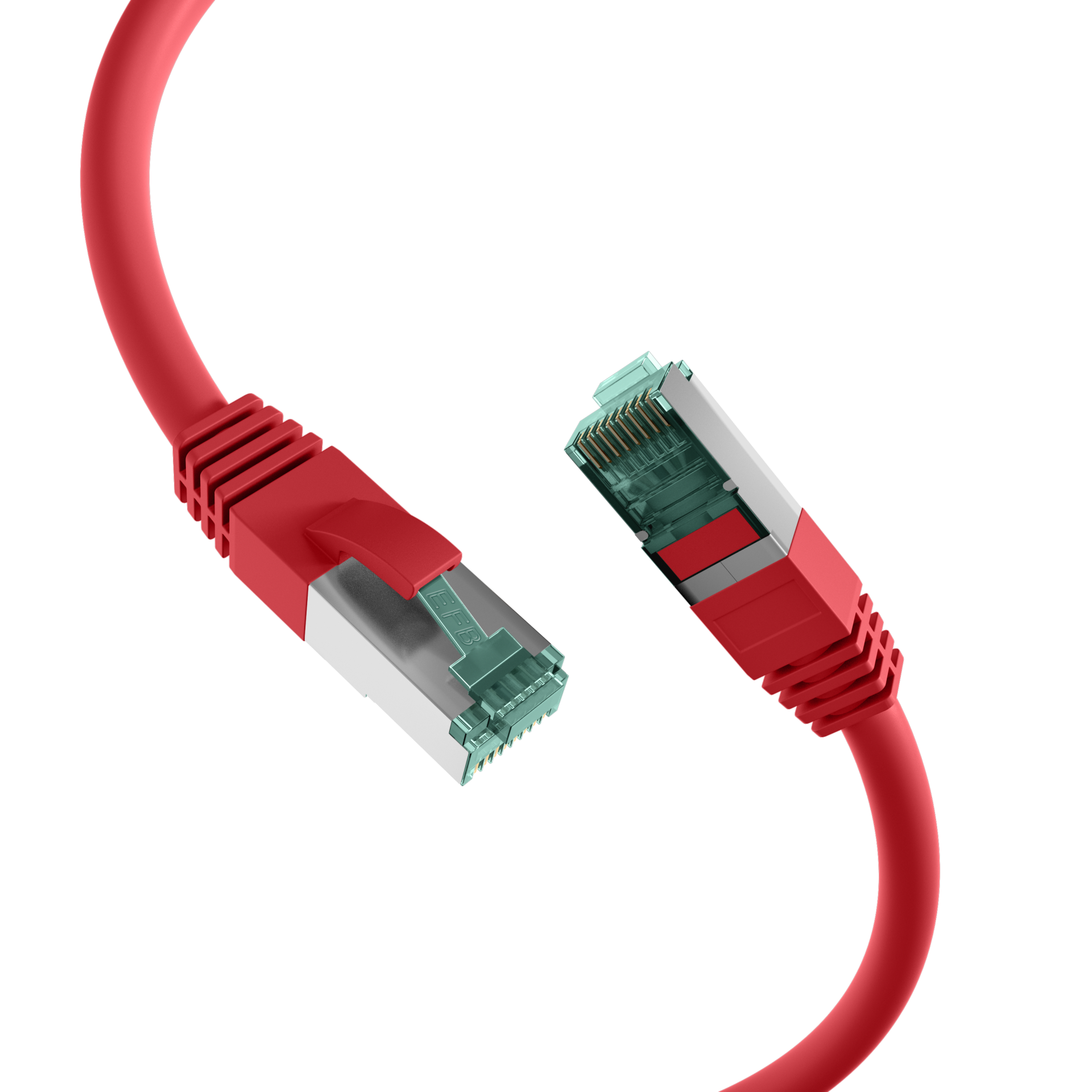

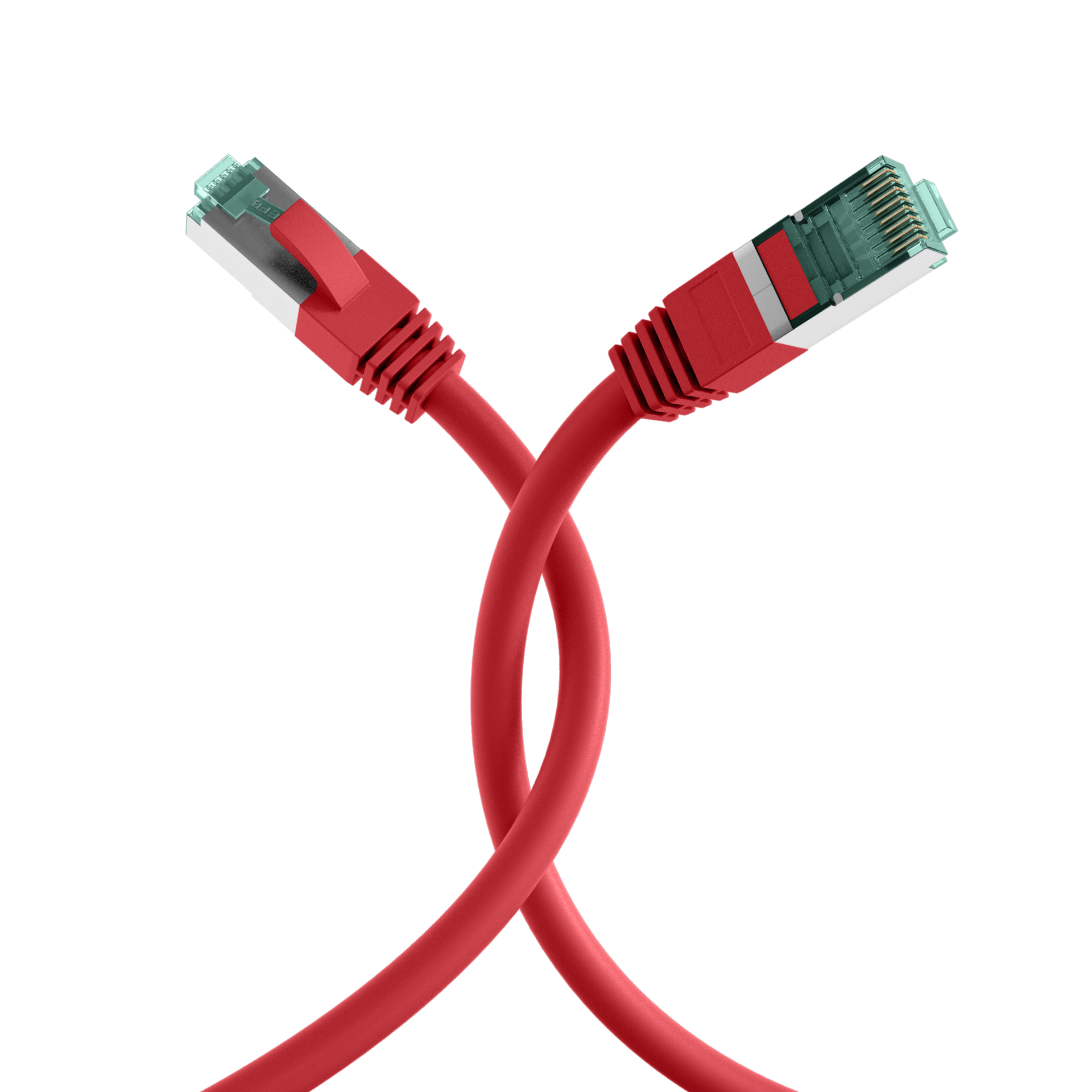

RJ45 Patch Cord Cat.6A S/FTP LSZH red 50m
Item number:
MK6001.50R
EAN no.:
4049759226527
Product information for RJ45 Patch Cord Cat.6A S/FTP LSZH red 50m
RJ45 patch cable Cat.6A S/FTP LSZH
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A ( TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the green RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is 500 MHz.
The Cat.6A (TIA) patch cable meets the requirements for 10Gbit Ethernet and has gold-plated contacts.
Technical product features
• Cat.6A ( TIA)
• S/FTP cable with AWG27/7
• Jacket material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of halogen-free LSZH material and has a length imprint on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the green RJ45 plugs is according to TIA/EIA 568B and is 1 :1. Suitable for the temperature range -20 - 60 °C.
The network cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and in data centers. The bandwidth is 500 MHz.
Technical properties
| AWG-size: | 27/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | plugged in |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 500MHz |
| Bending radius: | >30 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | red |
| Colour outer sheath: | red |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 185 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | RJ45 Standard green |
| Contact Resistance: | 30 mΩ |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Fire retardant version: | True |
| Flame retardant: | True |
| Halogen-free: | True |
| Halogen free: | True |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 10 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Loop resistance: | 370 Ω/km |
| Low smoke: | True |
| Mating cycles: | 2000 |
| Model: | Shielded |
| NVP value: | 74 % |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 6.0 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PATCH S/FTP 4x2xAWG27/7 LSZH ISO/IEC11801 ANSI/TIA-568-C.2 ***10Gigabit Ethernet*** www.efb-elektronik.de |
| Raw cable: | Cat.6A |
| Resistance unbalance: | 3 % |
| Silicone-free: | True |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | -20 – 60 °C |
| Test voltage: | 1000 V DC, 1min |
| Total screening: | 80 % |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| MK6001.0,15R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 0,15m | 0.15 m | ±5 % | |
| MK6001.0,25R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 0,25m | 0.25 m | ±5 % | |
| MK6001.0,5R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 0,5m | 0.5 m | ±5 % | |
| MK6001.1R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 1m | 1.0 m | ±5 % | |
| MK6001.1,5R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 1,5m | 1.5 m | ±5 % | |
| MK6001.2R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 2m | 2.0 m | ±5 % | |
| MK6001.3R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 3m | 3.0 m | ±5 % | |
| MK6001.5R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 5m | 5.0 m | ±5 % | |
| MK6001.7,5R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 7,5m | 7.5 m | ±5 % | |
| MK6001.10R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 10m | 10.0 m | ±5 % | |
| MK6001.15R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 15m | 15.0 m | ±5 % | |
| MK6001.20R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 20m | 20.0 m | ±5 % | |
| MK6001.25R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 25m | 25.0 m | ±5 % | |
| MK6001.30R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 30m | 30.0 m | ±5 % | |
| MK6001.40R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 40m | 40.0 m | ±5 % | |
| MK6001.50R | RJ45 Patch Cord Cat.6A S/FTP LSZH red 50m | 50.0 m | ±5 % |
