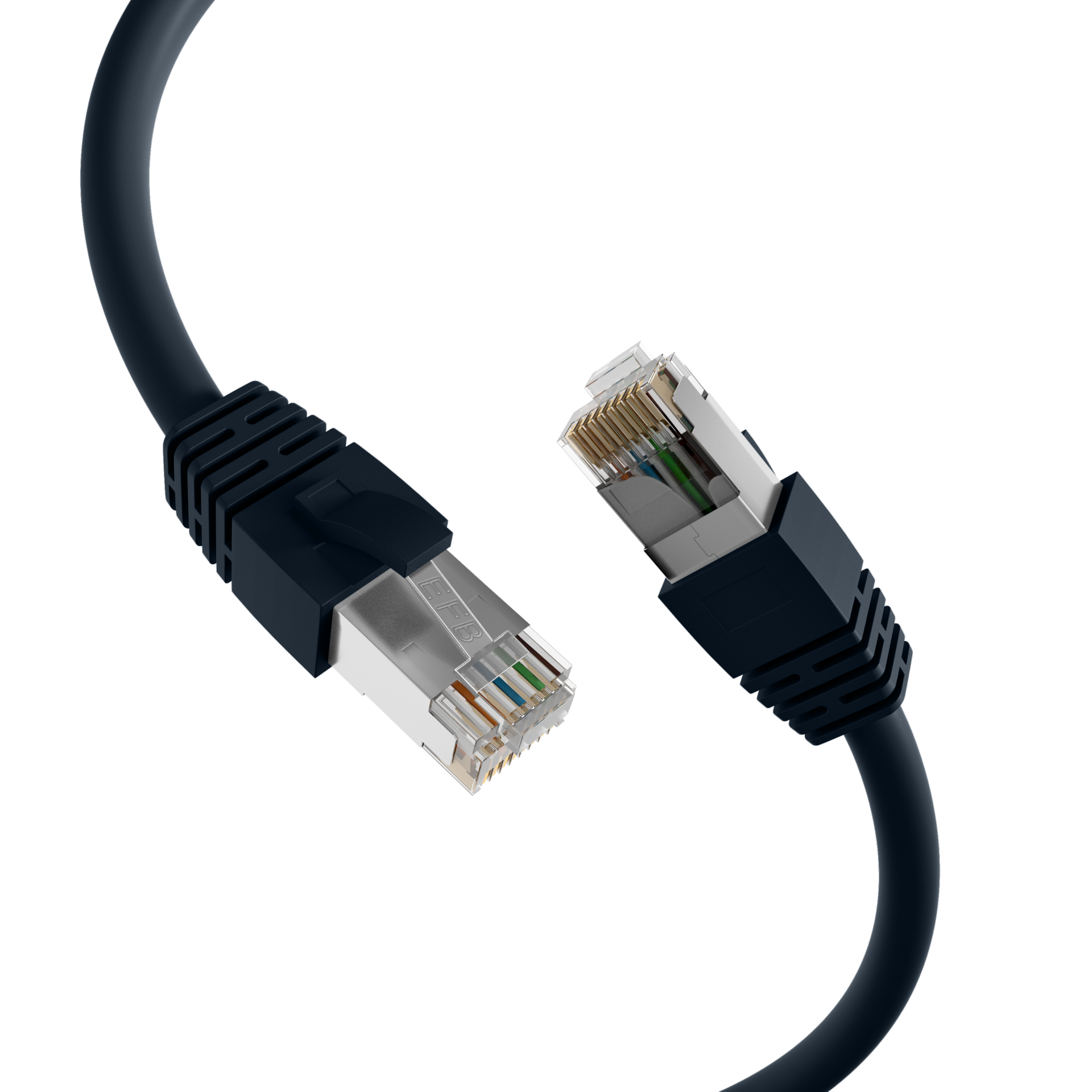

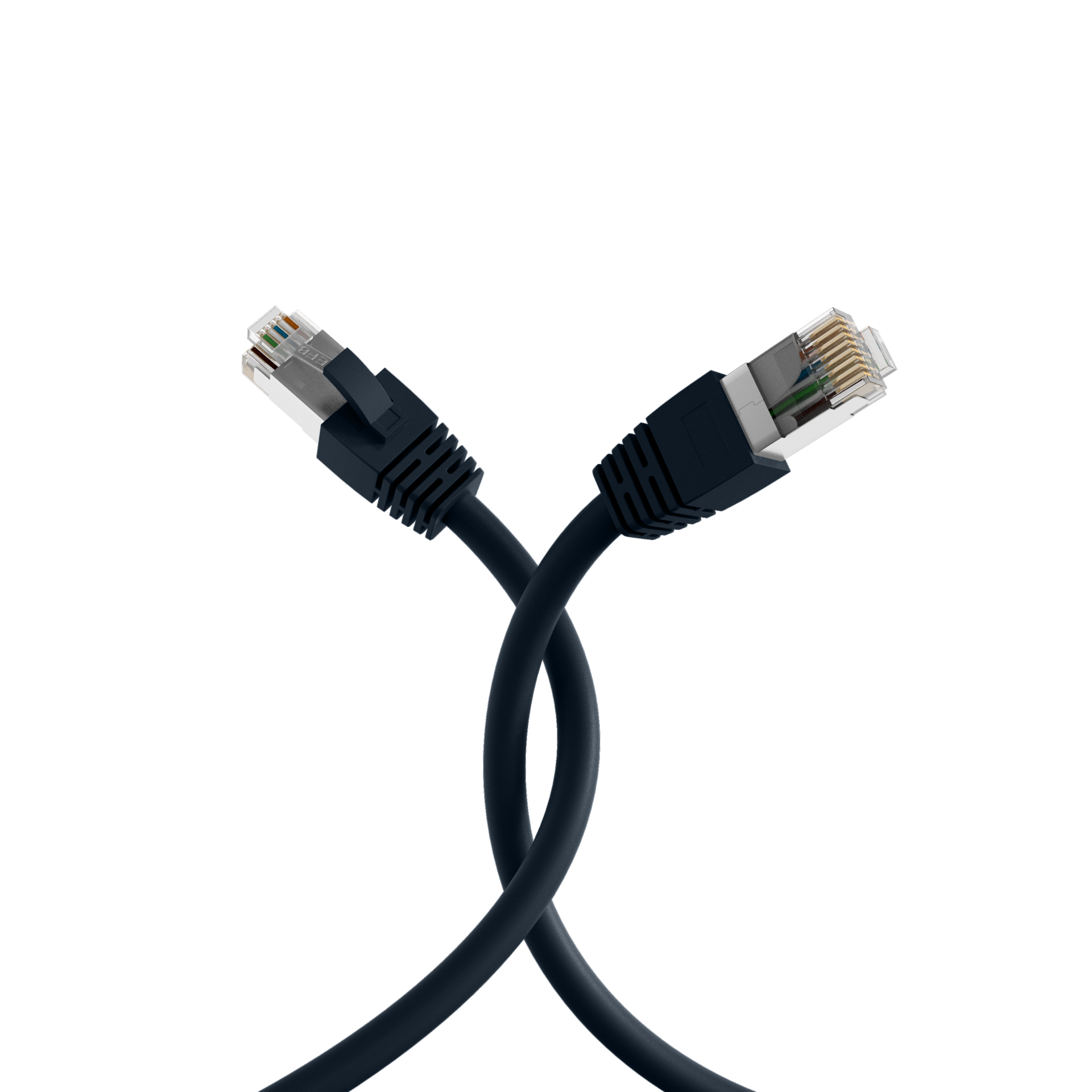

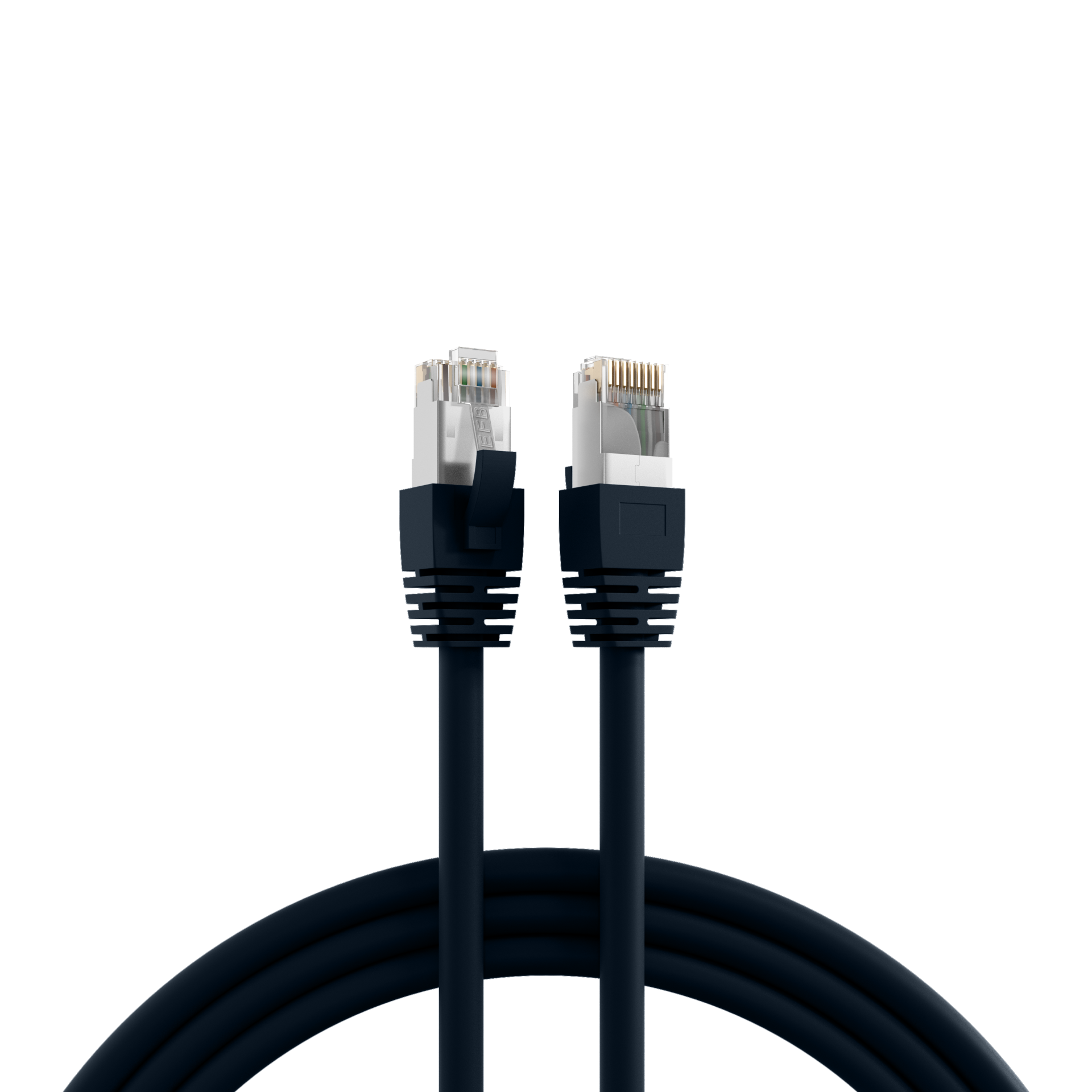

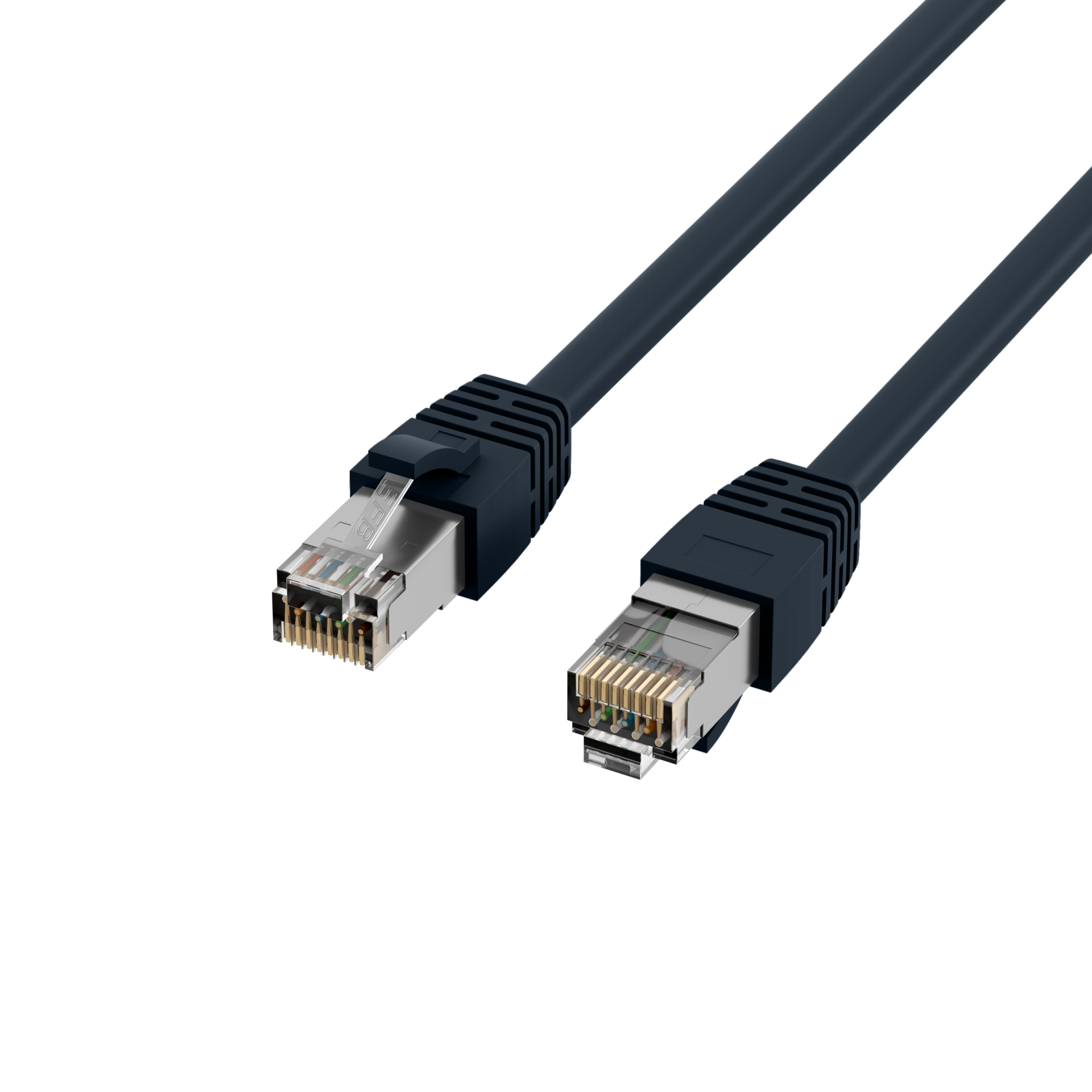

RJ45 Patch Cord Cat.8.1 S/FTP BC black
RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 2m
Item number:
K5528SW.2
EAN no.:
4049759215583
Product information for RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 2m
RJ45 patch cable Cat.8.1 S/FTP LSZH BC
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
The Cat.8.1 patch cable enables 25Gbit and 40Gbit Ethernet as a transmission standard and has gold-plated contacts.
Technical product properties
• Cat.8.1
• S/FTP cable with AWG24/7
• Jacket material made of halogen-free LSZH
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The jacket of the shielded The patch cable is made of halogen-free LSZH material and has a length print on the grommet. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the RJ45 plugs is according to TIA/EIA 568B and is 1: 1. Suitable for the temperature range 0 - 60 °C.
The network cable has a conductor material made of copper and is ideal for use in structured building cabling, industrial Ethernet and in data centers. This enables a bandwidth of 2000 MHz.
Technical properties
| AWG-size: | 24/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of Application: |
Data center Industrial Ethernet Structured cabling |
| Bandwidth: | 2000MHz |
| Bending radius: | >40 mm |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 8.1 |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Conductive shield: | Selected shield contact |
| Conductor Material: | Copper |
| Connector: | IEC 60603-7-81 |
| Connector type: | RJ45 standard |
| Contact Resistance: | 5 mΩ |
| Contacts: | Gold plated |
| Current Rating: | max. 1 A |
| Impedance: | 100 ±15 Ω |
| Insulation Resistance: | 10 MΩ |
| Jacket Material: | LSZH |
| Length imprint: | True |
| Locking lever: | True |
| Mating cycles: | ≥750 |
| Model: | Shielded |
| Operating-/ tempering voltage: | max. 50 V DC |
| Outer diameter of the cable: | 8 mm |
| POE class: |
4PPoE acc. to IEEE802.3bt PoE+ acc. to IEEE802.3at PoE acc. to IEEE802.3af |
| Pin assignment: | 1:1 |
| Printing: | CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801 |
| Suitable for degree of protection (IP): | IP20 |
| Temperature range: | 0 – 60 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
Variants
| Item no. | Name | Length | Längentoleranz | |
|---|---|---|---|---|
| K5528SW.0,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 0,5m | 0.5 m | ±5 % | |
| K5528SW.1 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 1m | 1.0 m | ±5 % | |
| K5528SW.2 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 2m | 2.0 m | ±5 % | |
| K5528SW.3 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 3m | 3.0 m | ±5 % | |
| K5528SW.5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 5m | 5.0 m | ±5 % | |
| K5528SW.7,5 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 7,5m | 7.5 m | ±5 % | |
| K5528SW.10 | RJ45 Patch Cord Cat.8.1 S/FTP LSZH BC black 10m | 10.0 m | ±5 % |
