Roof Fan Unit, 4 x Fan, 1U, RAL7035

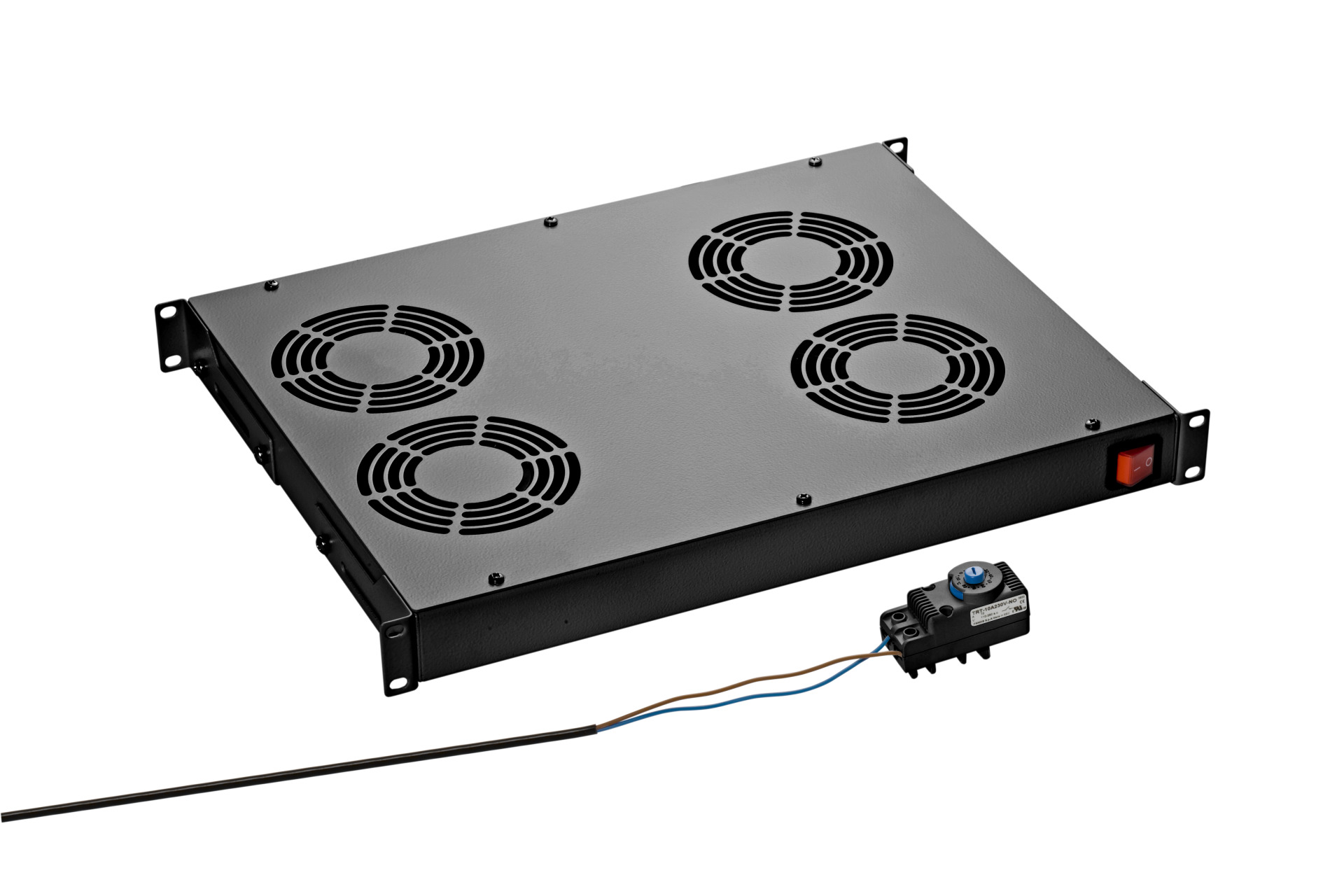

Roof Fan Unit, 4 x Fan, for Network and Server Cabinets
Item number:
691655V3
EAN no.:
4049759051594
Product information for Roof Fan Unit, 4 x Fan, for Network and Server Cabinets
For installation in roof of all network and server cabinets Classic
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
19" Mounting possible with optional mounting set (Art.-No. 691654MS / 691654MSTS)
Control via connected thermostat (Art.-No. 691642)
Thermostat and mounting material included
Rear-sided power connection via IEC C14 socket (power cable not included, e.g. Art.-No. EK504.x)
Rated voltage 230 V, 50 Hz
Illuminated switch ON/OFF
Rear sided earth connection via earth jack
Material: steel sheet
Paint finish: RAL7035 light grey / RAL9005 jet black
Technical properties
| Air circulator: | True |
|---|---|
| Built as slide-in ventilator: | True |
| Degree of protection: | IP20 |
| EMC-version: | True |
| Mounting method: | Screw mounting |
| Operating voltage at AC 50 Hz: | 230 V |
| Roof ventilator: | True |
| Suitable for 19 inch rack mounting: | True |
| Suitable for wall built-in: | False |
| Voltage type: | AC |
| With filter: | False |
