SC Connectors
SC-Connector Simplex Multimode, 2mm, red grommet
Item number:
53206.22
EAN no.:
4049759263805

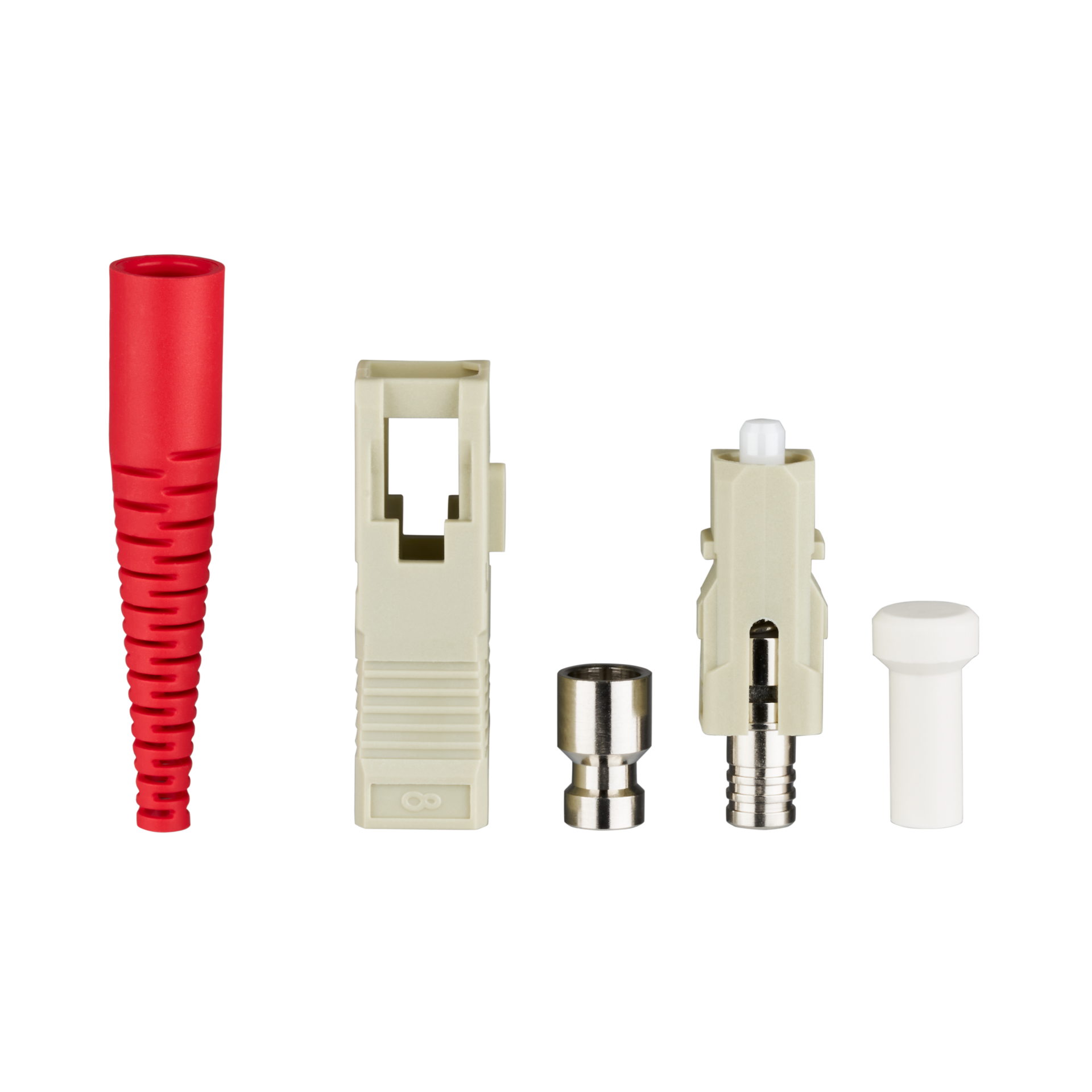

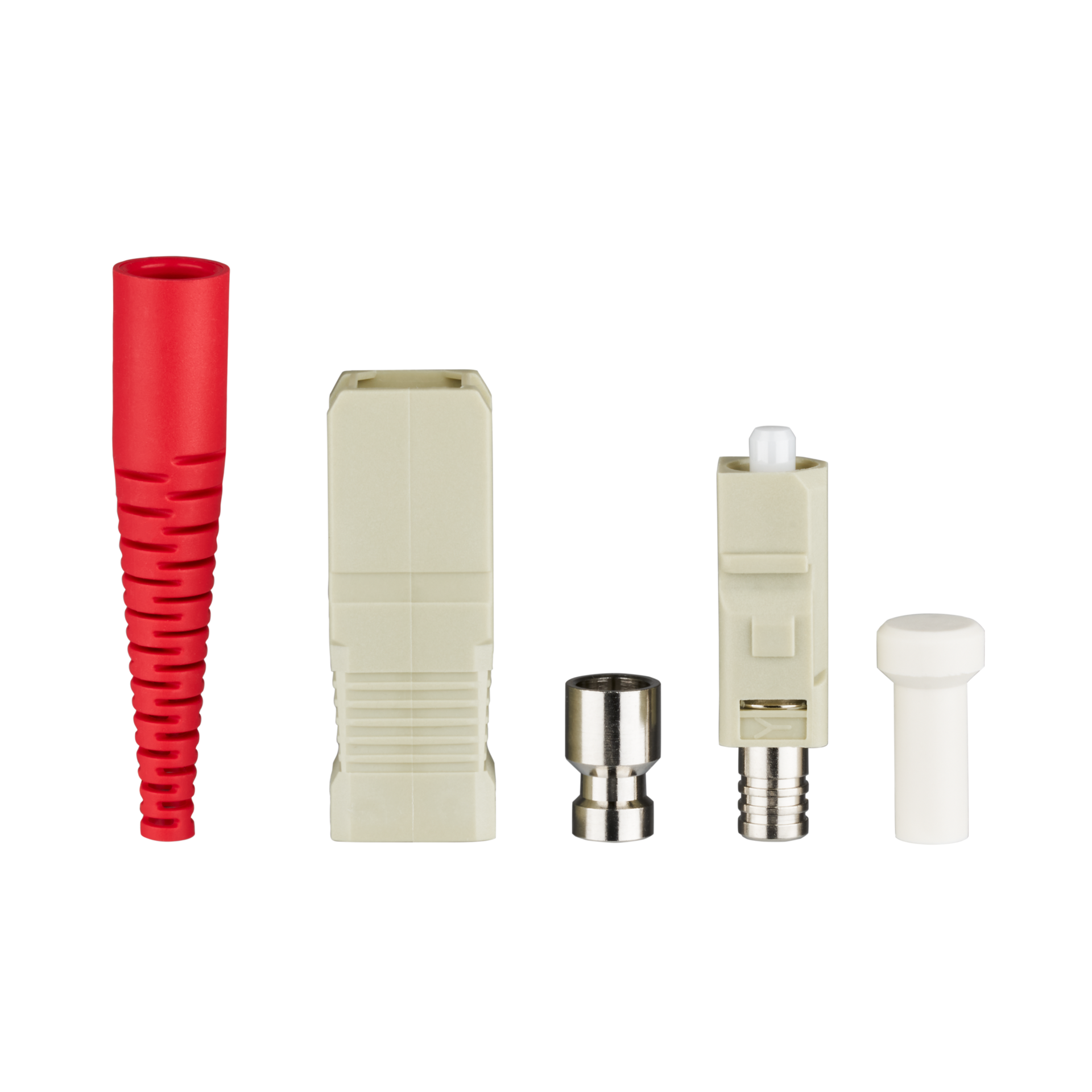

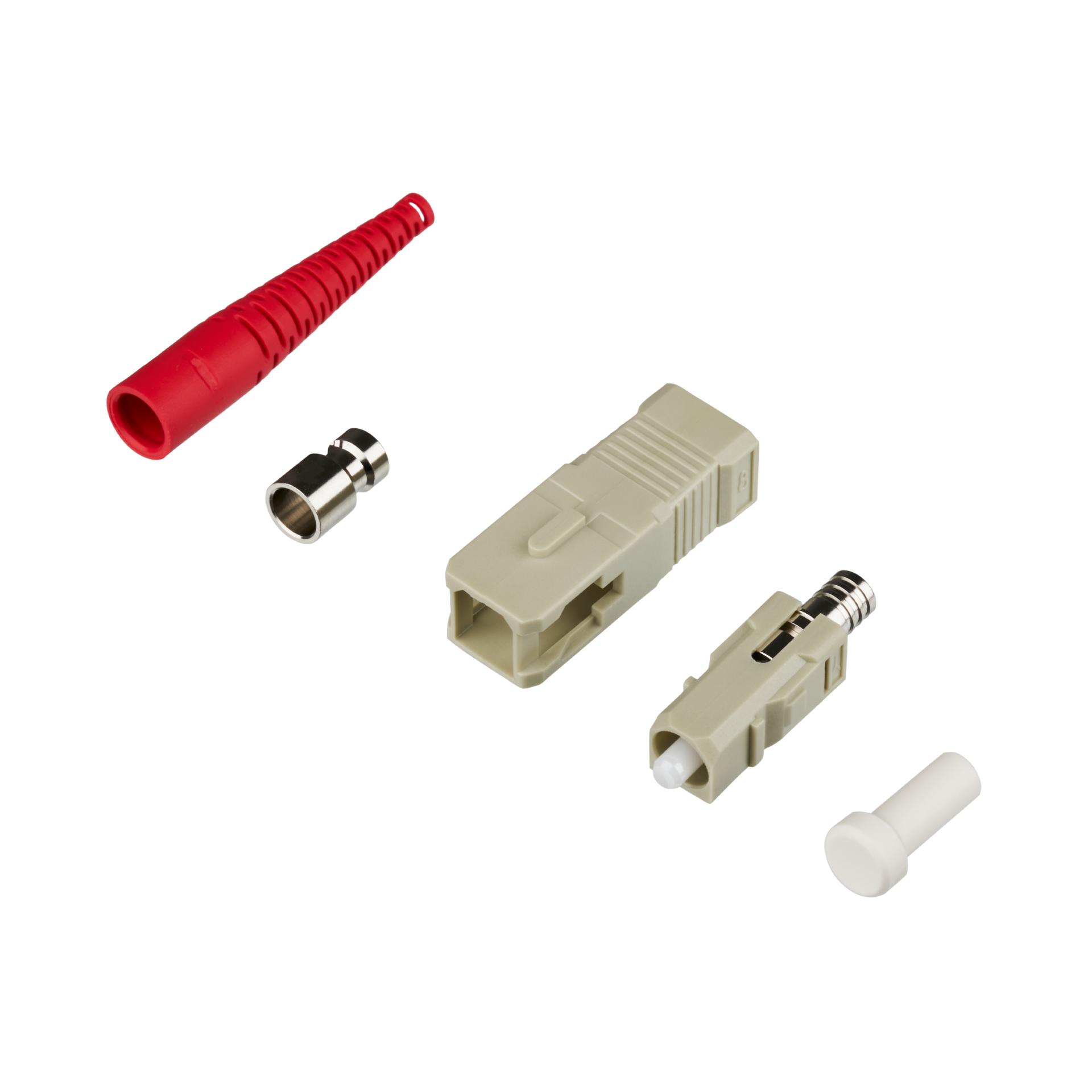

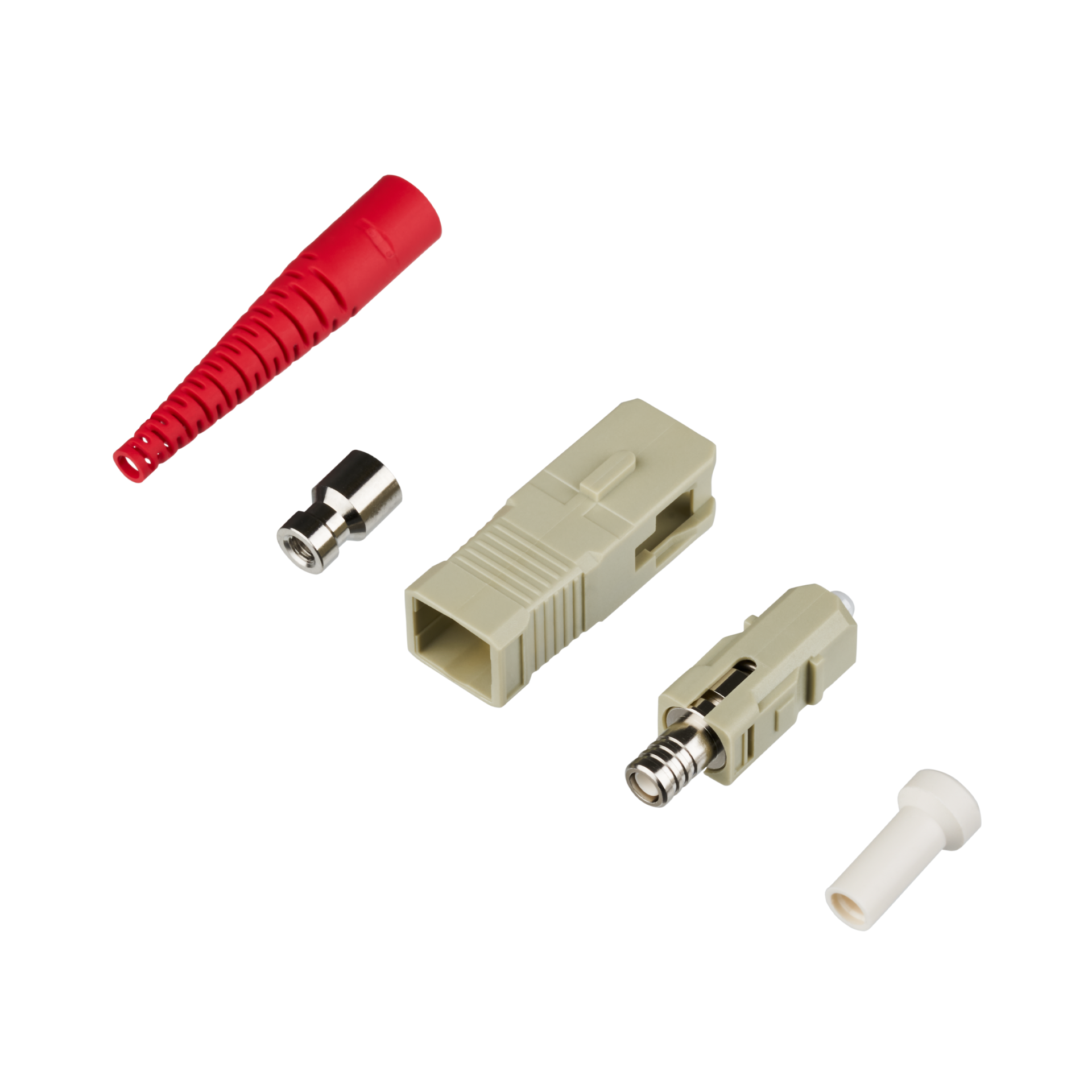

Product information for SC-Connector Simplex Multimode, 2mm, red grommet
SC-Connector set simplex multimode or singlemode complete incl. crimp set.
Technical properties
| Connection type: | Crimping |
|---|---|
| Durchmesser Ferrulenöffnung: | 126 µm |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Type of connector: | SC |
Variants
| Item no. | Name | Anti-kink sleeve | Suitable for type of fibre | APC version | Colour | Cable Ø | |
|---|---|---|---|---|---|---|---|
| 53214.2 | SC/APC Connector, Simplex Singlemode, 2,8mm | - | Singlemode | True | green | 2.8 mm | |
| 53213.2 | SC-Simplex-Connector 2,8mm, Singlemode | - | Singlemode | False | blue | 3.0 mm | |
| 53206.11 | SC-Connector Simplex Multimode, 3mm, black grommet | black | Multimode | False | beige | 3.0 mm | |
| 53206.12 | SC-Connector Simplex Multimode, 3mm, red grommet | red | Multimode | False | beige | 3.0 mm | |
| 53214.1 | SC/APC Connector, Simplex Singlemode, 2,0mm | - | Singlemode | True | green | 2.0 mm | |
| 53206.21 | SC-Connector Simplex Multimode, 2mm, black grommet | black | Multimode | False | beige | 2.0 mm | |
| 53206.22 | SC-Connector Simplex Multimode, 2mm, red grommet | red | Multimode | False | beige | 2.0 mm |
