Wall housing 10 inch
Back

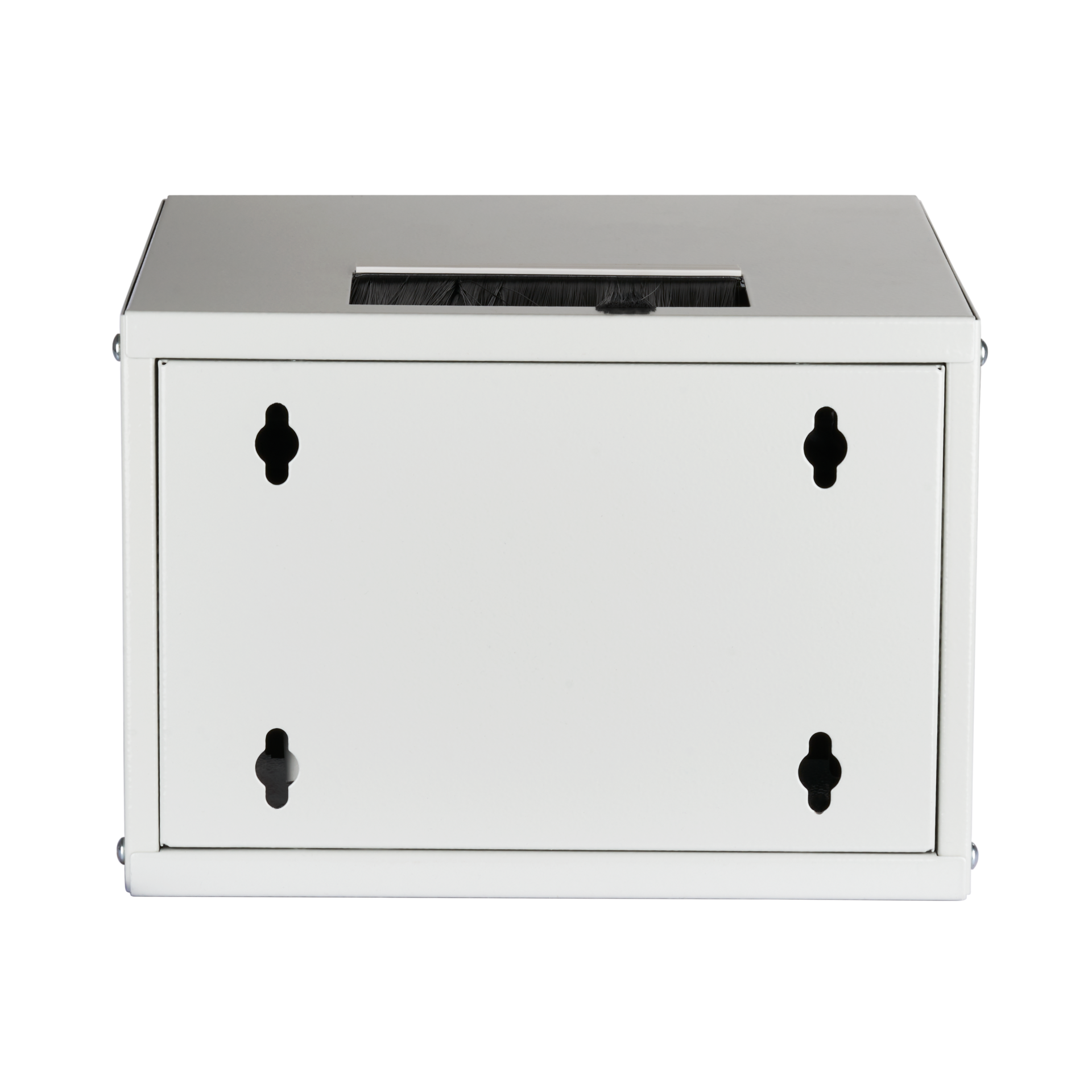

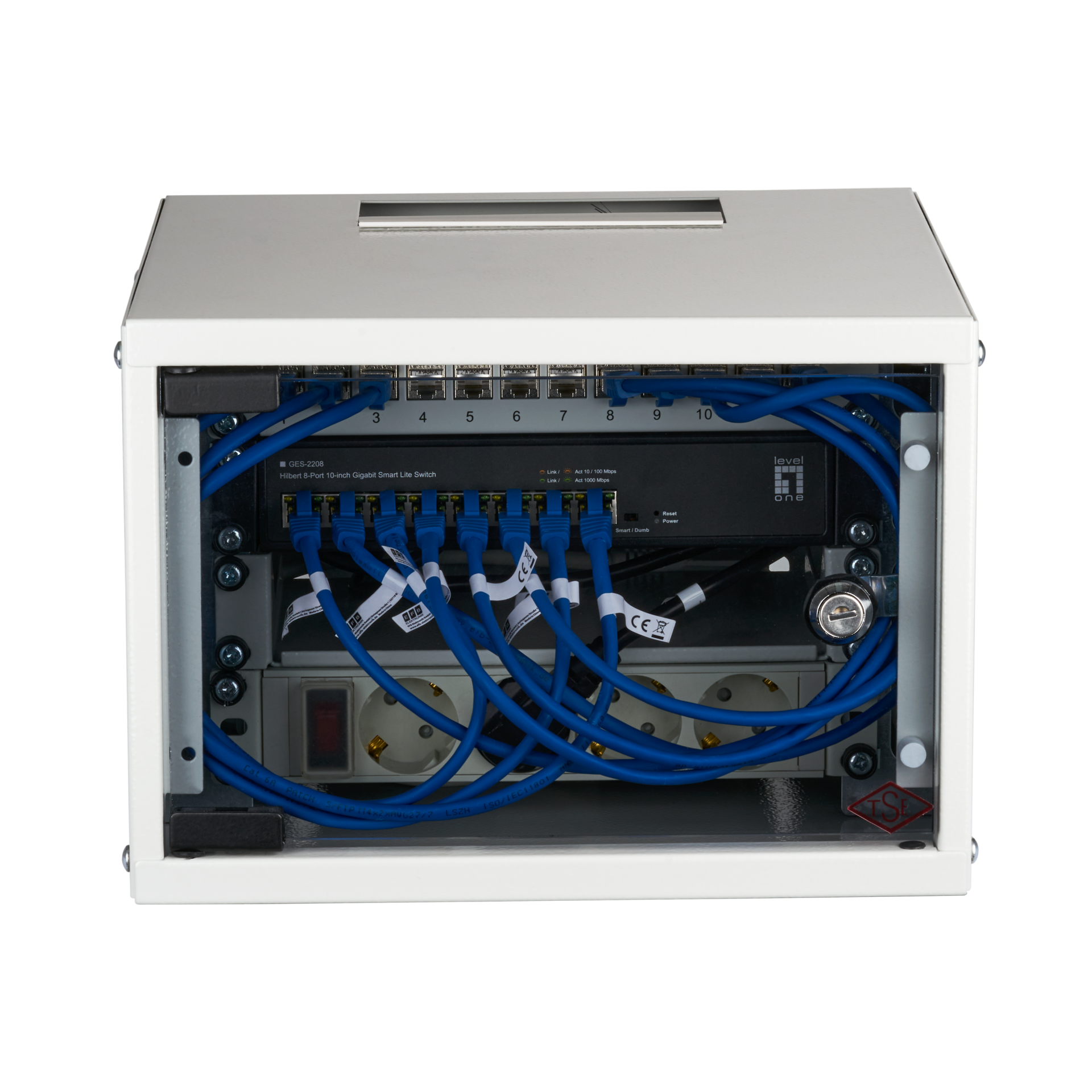

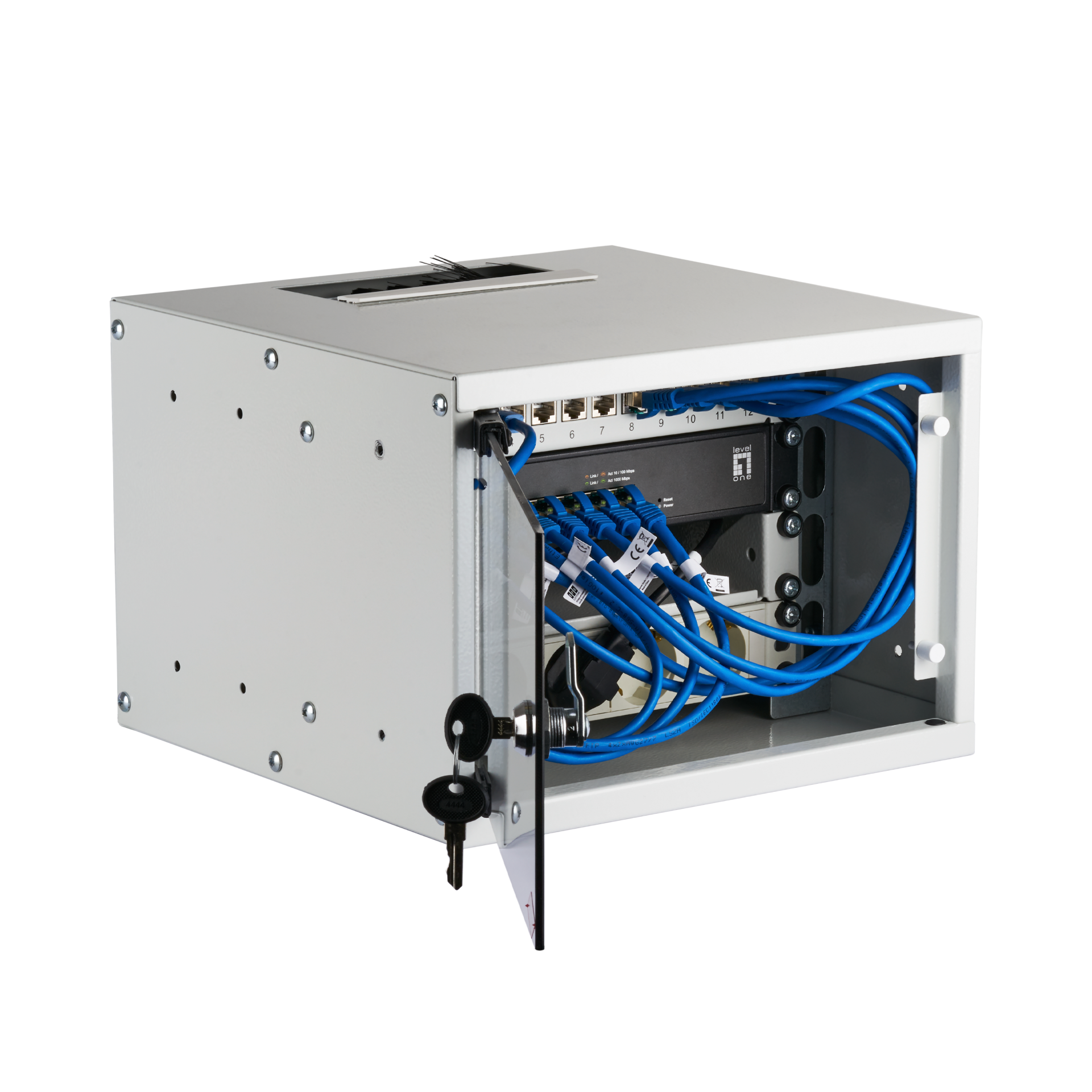

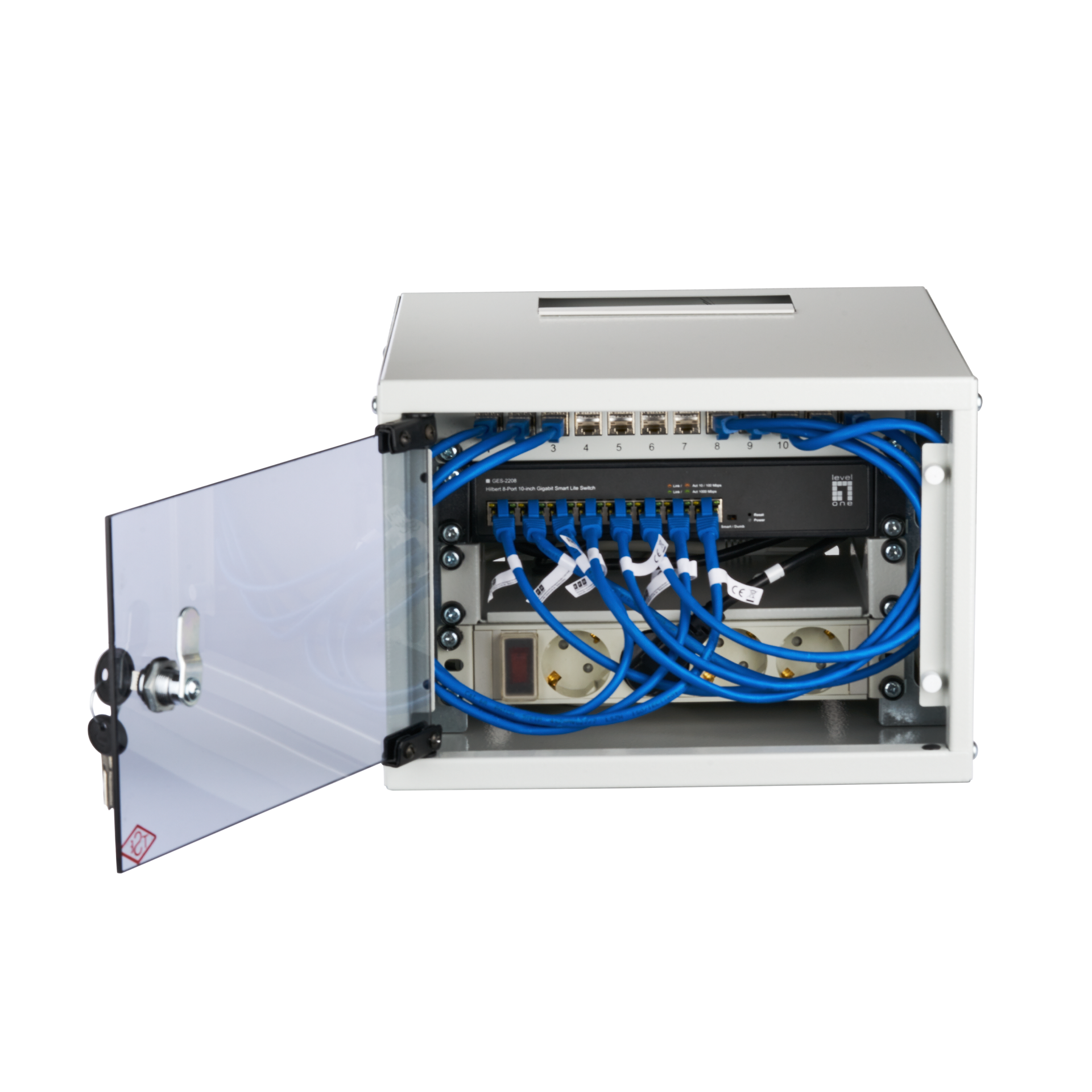

Set 10“ 4U Wall Cabinet grey RAL7035

Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly
Item number: WGB-1004GR.30-SET1
EAN no.: 4049759322328
Piece
Log in as a customer
Description

Product information for Set 10“ 4U wall housing grey RAL7035 including accessories for self-assembly

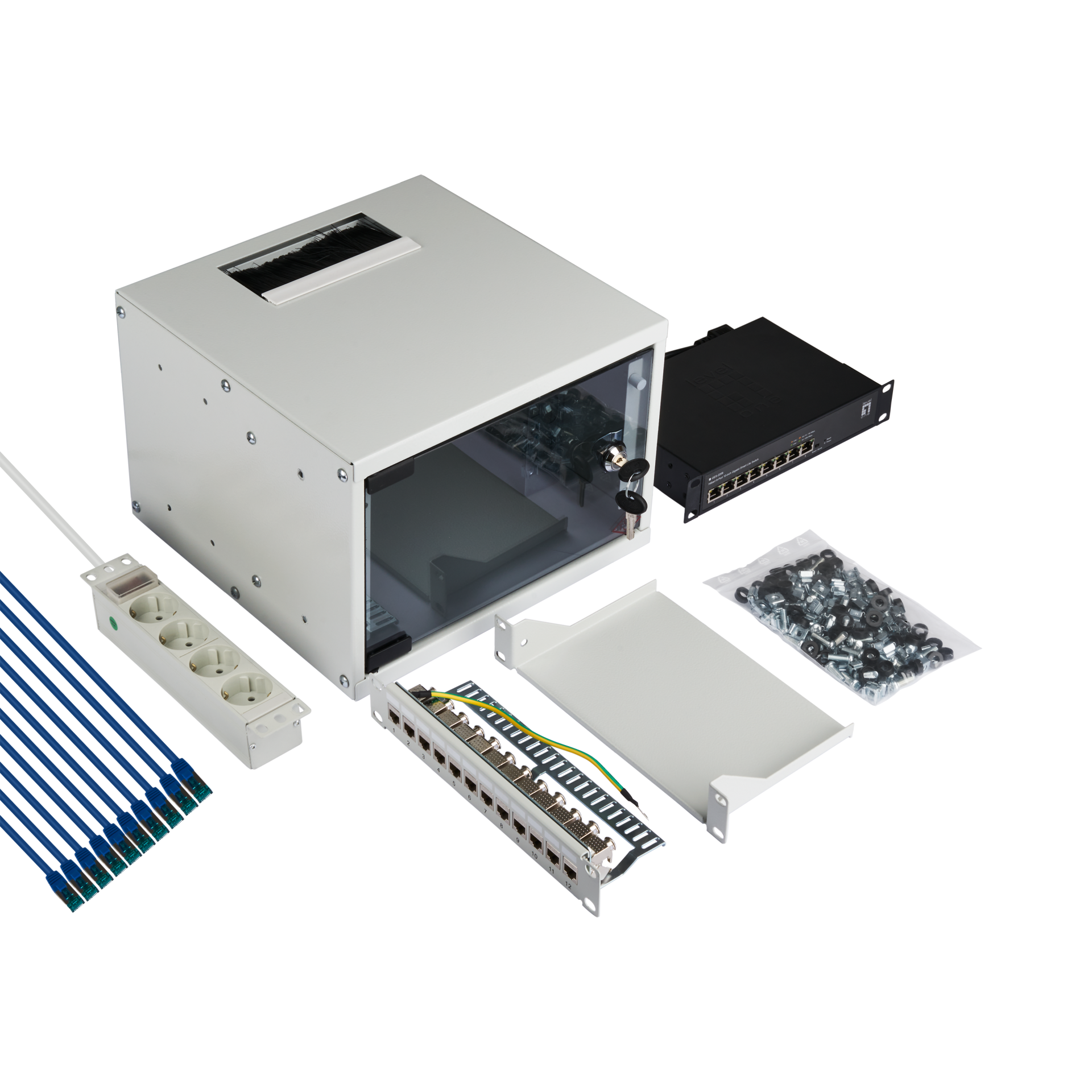

Complete 10“ network set for individual self-assembly for your home or SOHO network, consisting of the following components:
1 x 10“ 4U Wall housing, RAL7035 (Art.-No. WGB-1004GR.30)
1 x 10“ Shelf, RAL7035 (Art.-Nr. 691820GR.1)
1 x 10“ Socket strip with switch, RAL7035 (Art.-No. EK631DE.11GR)
1 x 10“ Level-One Managed Gigabit-Switch, 8 Port RJ45 (Art.-No. GES-2208)
1 x 10“ Keystone panel 12-Port, RAL7035 (Art.-No. 691826)
12 x RJ45 Keystone module Slimline Cat.6A, 10 Gbit/s, GHMT certified (Art.-No. E-200100)
10 x RJ45 Patch cable Cat.6A, length 0.5 m, blue (Art.-No. MK6001.0,5BL)
1 x Power cable CEE7/7 to IEC C13 angled, length 2 m (Art.-No. EK535.2)
1 x Set of captive nuts, PU 20 pieces (Art.-No. 691099M)
Technical properties

Technical properties

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 254 mm (10 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True
