Side Walls for ESV 42U, D=1200 mm, Type A/B/C/D/E, RAL7035
![](https://www.efb-elektronik.de/media/c2/3c/6d/1652202152/RAL7035_RAL9005.jpg)

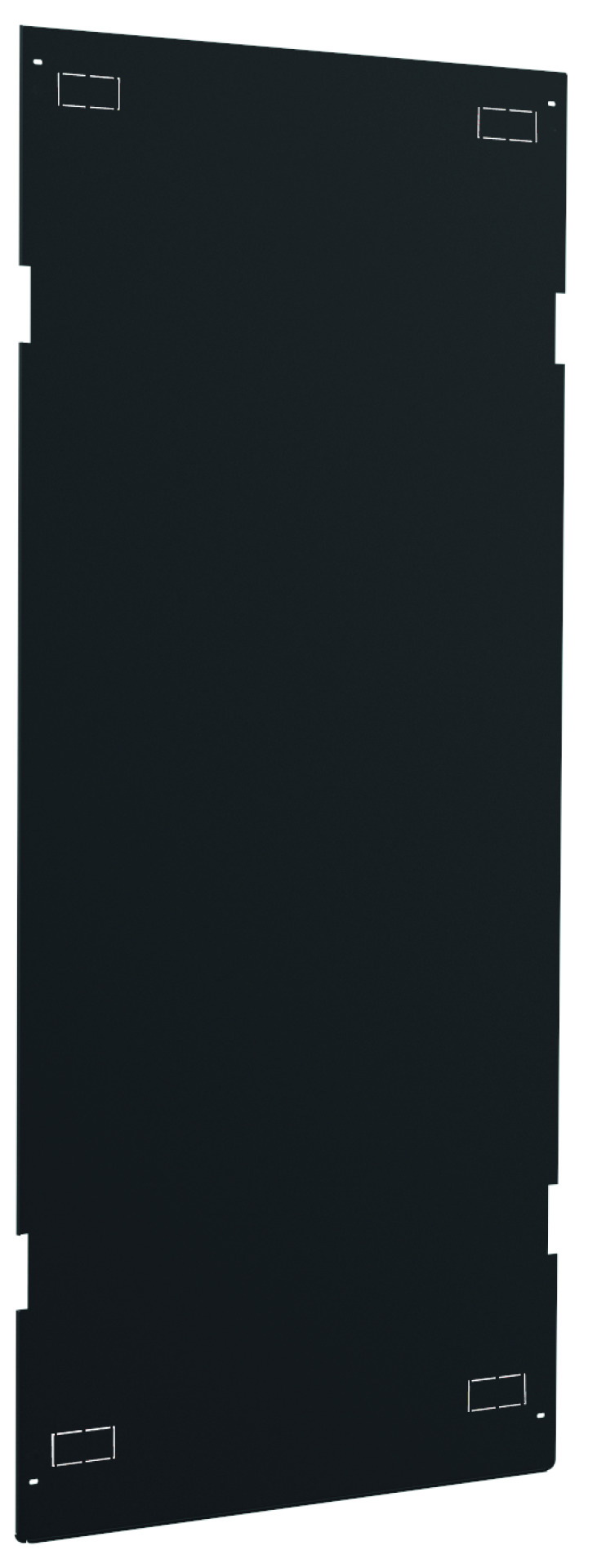

Side Wall for ESV 42U, D=1200 mm, Type B, RAL7035
Item number:
ESV-W422B.GR
EAN no.:
4049759245009
Product information for Side Wall for ESV 42U, D=1200 mm, Type B, RAL7035
Side walls resp. partitions for server cabinets EFB-Server are available in 4 variants:
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side
Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition
Side wall type A:
- Enables door opening angle of 270°
- Cabinet width increases by 3 mm per side
Side wall type B:
- Enables the mounting of PDUs lateral of the 19" profiles for cabinet width 600 mm
- Cabinet width increases by 3 mm per side
Partition typ C/D:
- Partition for mounting between lined-up cabinets
With 4 pre-punched cable openings 150 x 45 mm and 4 cutouts for line-up connectors
Front and bottom bends for easy installation
Necessary cabinet distance only 2 mm
Partition type C: for use at cabinets with levelling feet
Partition type D: for use at cabinets without levelling feet
Partition type E: for mounting inside of the cabinet frame
Material steel sheet
Scope of delivery: 1 x side wall/partition
Technical properties
Cabinet Series: | EFB-Server |
---|---|
Material: | Steel |
Suitable as rear panel: | False |
Suitable as side panel: | True |
Surface finishing: | Powder coating |
Variants
Item no. | Name | Number of height units | Suitable for enclosure building depth | Colour | Type | RAL-Nummer | Mit Kabeleinführung | Mit Schloss | |
---|---|---|---|---|---|---|---|---|---|
ESV-W422A.GR | Side Wall for ESV 42U, D=1200 mm, Type A, RAL7035 | 42 U | 1200 mm | grey | Door opening 270° | 7035 | Nein | Ja | |
ESV-W422B.GR | Side Wall for ESV 42U, D=1200 mm, Type B, RAL7035 | 42 U | 1200 mm | grey | PDU in W=600 mm | 7035 | Nein | Ja | |
ESV-W422C.GR | Side Wall for ESV 42U, D=1200 mm, Type C, RAL7035 | 42 U | 1200 mm | grey | Partition w/o feet | 7035 | Ja | Nein | |
ESV-W422D.GR | Side Wall for ESV 42U, D=1200 mm, Type D, RAL7035 | 42 U | 1200 mm | grey | Partition with feet | 7035 | Ja | Nein |
