Micro Splice Distributor Housing, unassembled

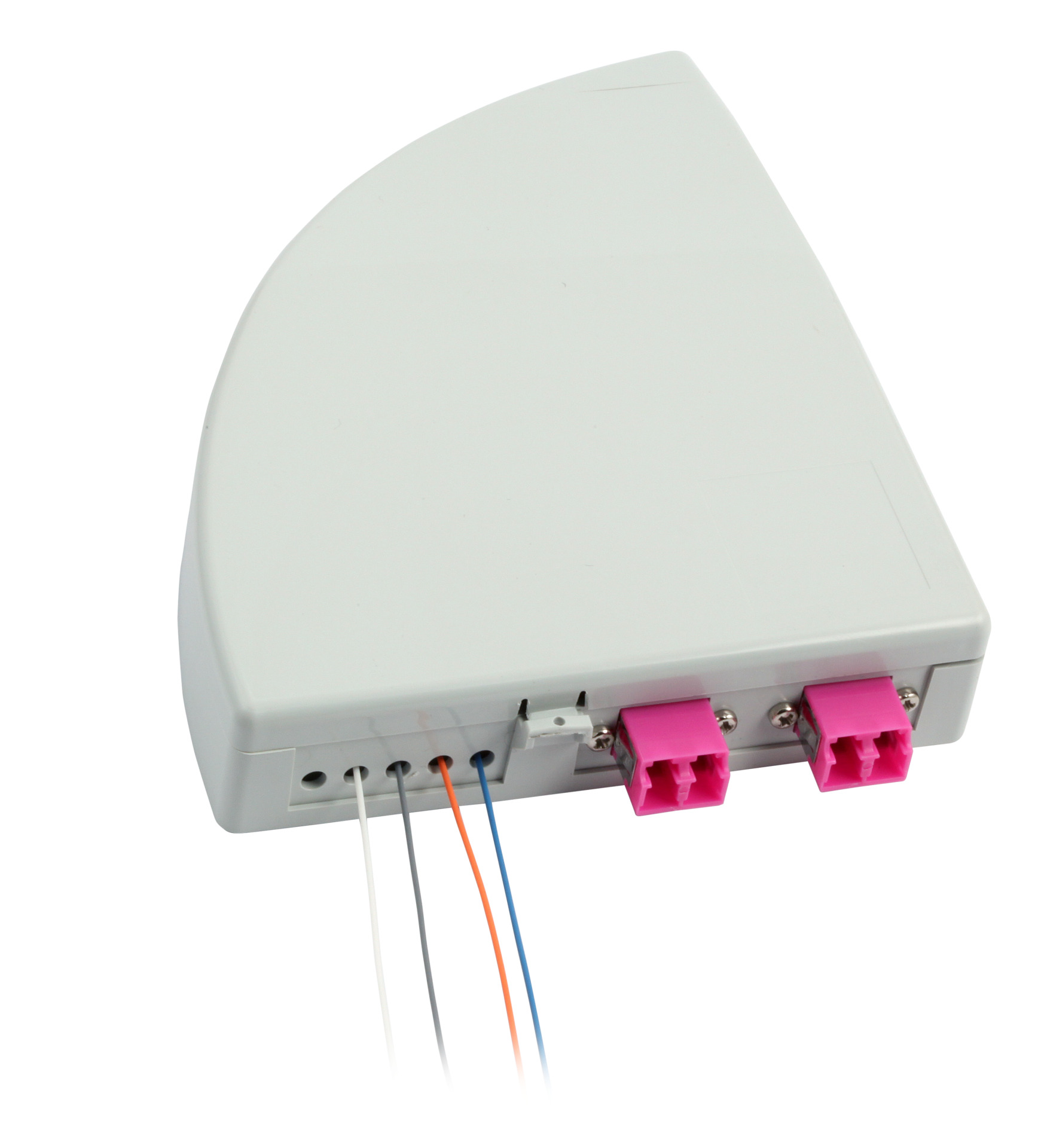

Small Splice distributor housing, IP20, RAL7035
Item number:
53712.1
EAN no.:
4049759072087
Product information for Small Splice distributor housing, IP20, RAL7035

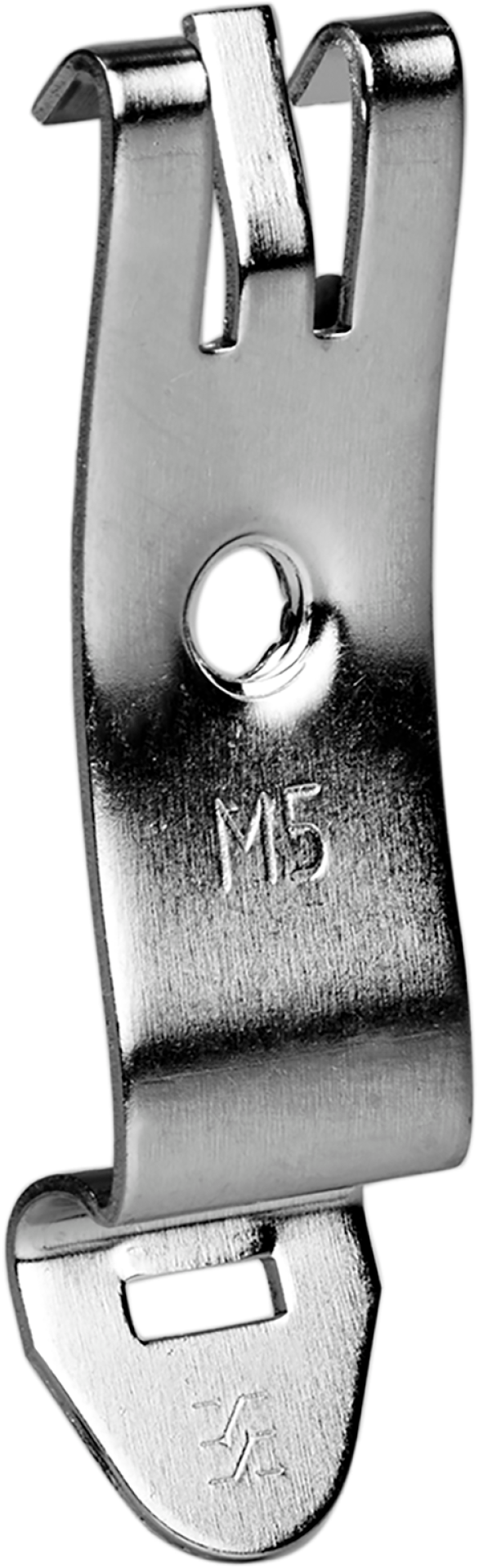

Wall-, cable duct- or DIN Rail mounting possible (clip + screw please order separately)

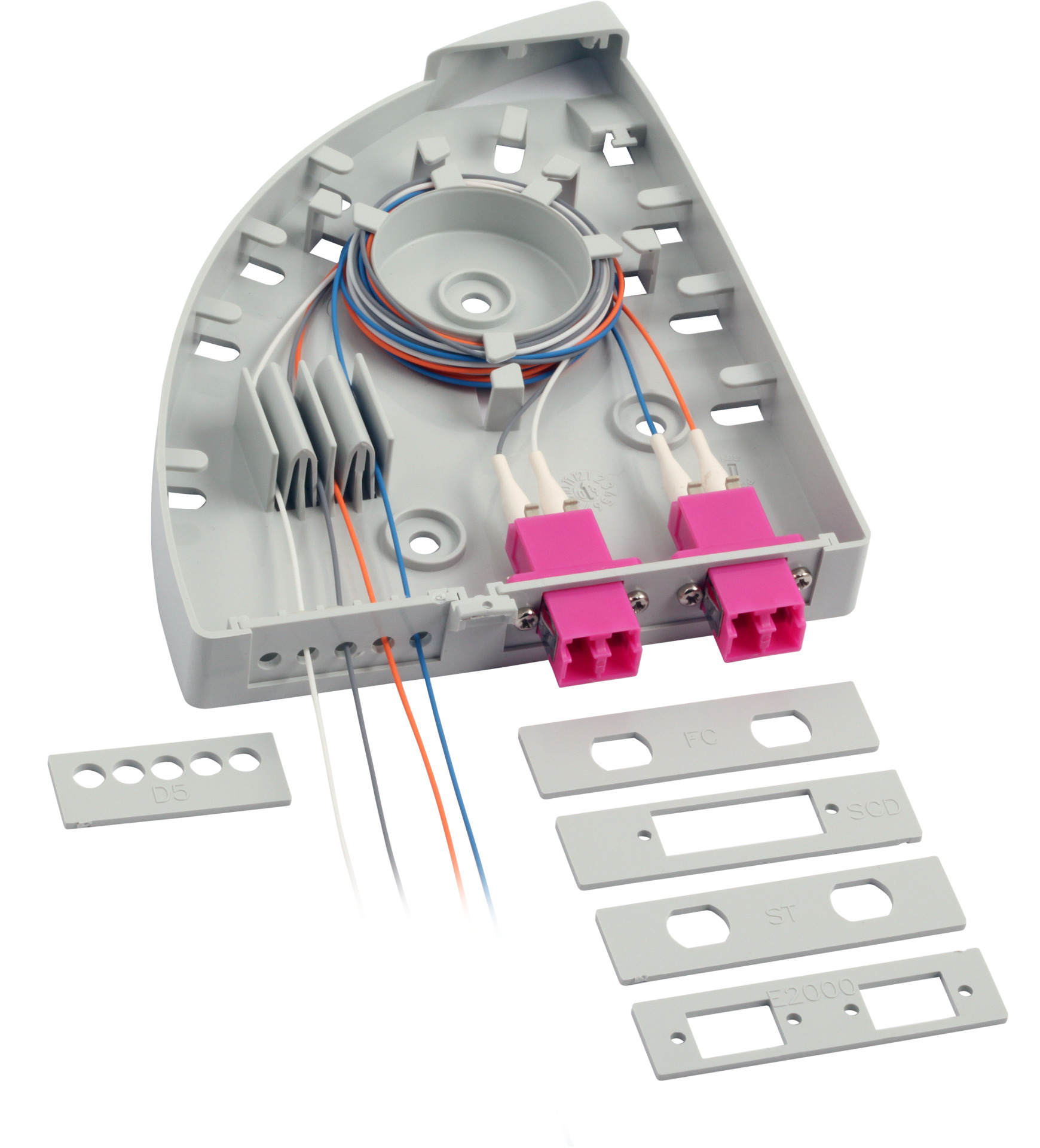

Plastic housing with holder for adapters:
2 x SC-Simplex, 2 x LC-Duplex, 2 x E2000®, 2 x FC, 2 x ST, 1 x SC-Duplex or 1 x LC-Quad
1 x cable entry with 5 holes 5 mm
1 x cable entry with 5 holes 3 mm
Holder for 4 x shrink splice protection
Pre-stamped outlines for fiber depot

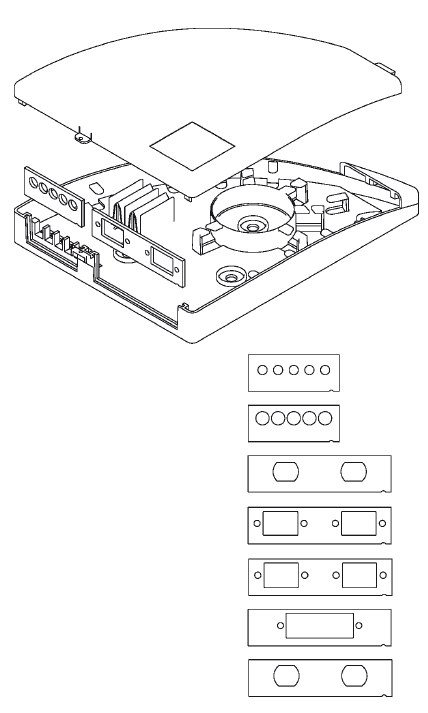

Scope of delivery: 5 x holders for several adapters, 2 x cable entries, 2 x S6 dowel and screws, 6 x cable ties
Dimensions: 110x140x20mm
Plastic housing with holder for adapters:
2 x SC-Simplex, 2 x LC-Duplex, 2 x E2000®, 2 x FC, 2 x ST, 1 x SC-Duplex or 1 x LC-Quad
1 x cable entry with 5 holes 5 mm
1 x cable entry with 5 holes 3 mm
Holder for 4 x shrink splice protection
Pre-stamped outlines for fiber depot
Scope of delivery: 5 x holders for several adapters, 2 x cable entries, 2 x S6 dowel and screws, 6 x cable ties
Dimensions: 110x140x20mm
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Dimension (LxBxH): | 110 x 140 x 20 mm |
| Direct Burial: | False |
| In-/Output: | 2 |
| Lockable: | False |
| Material: | Plastic |
| Separated compartments: | False |
| Splice Cassette: | without cassette |
| Splice Holder: | without |
| Suitable for number of fibres: | 4 |
| Type of coupler: | Fusionsplicer |
