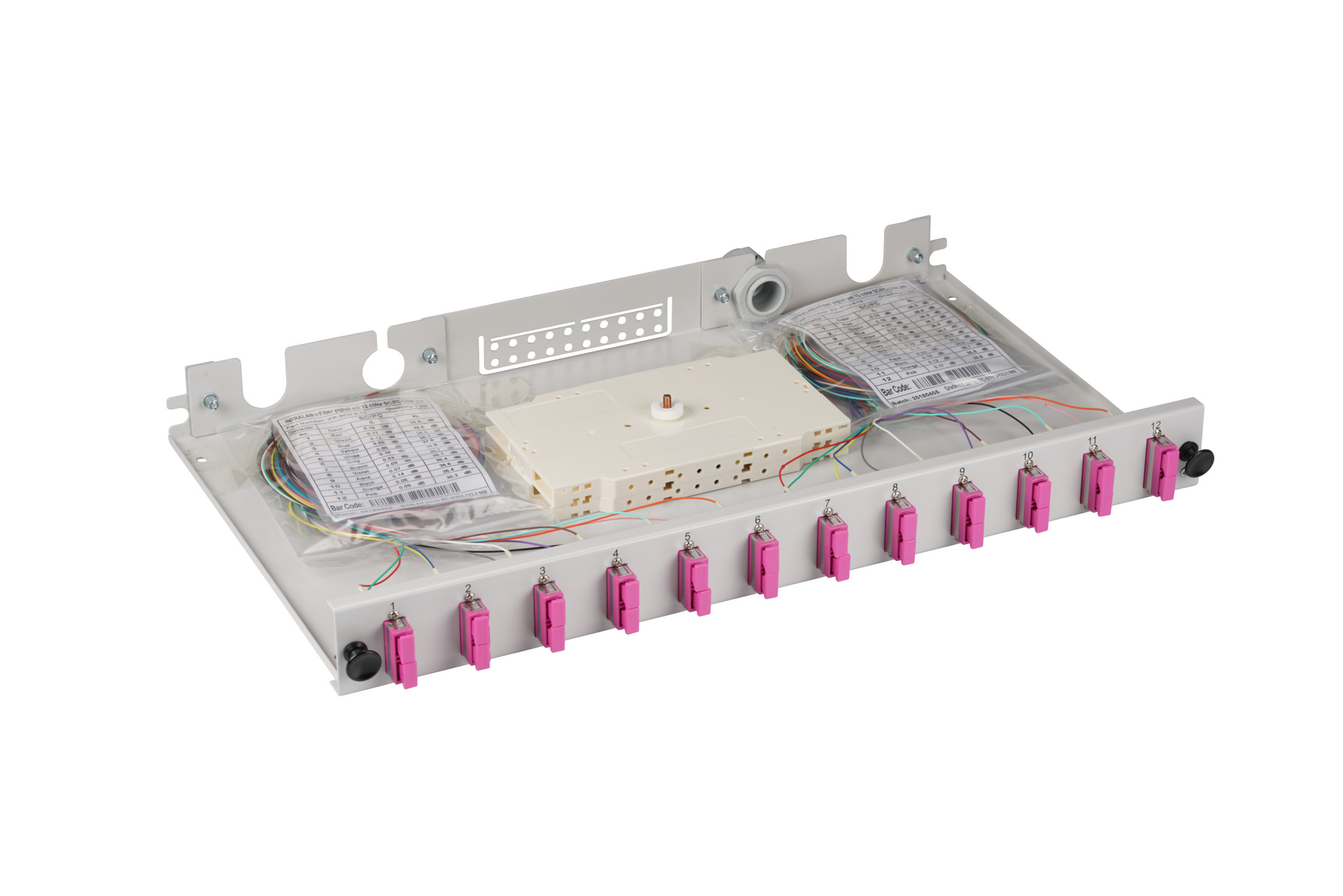

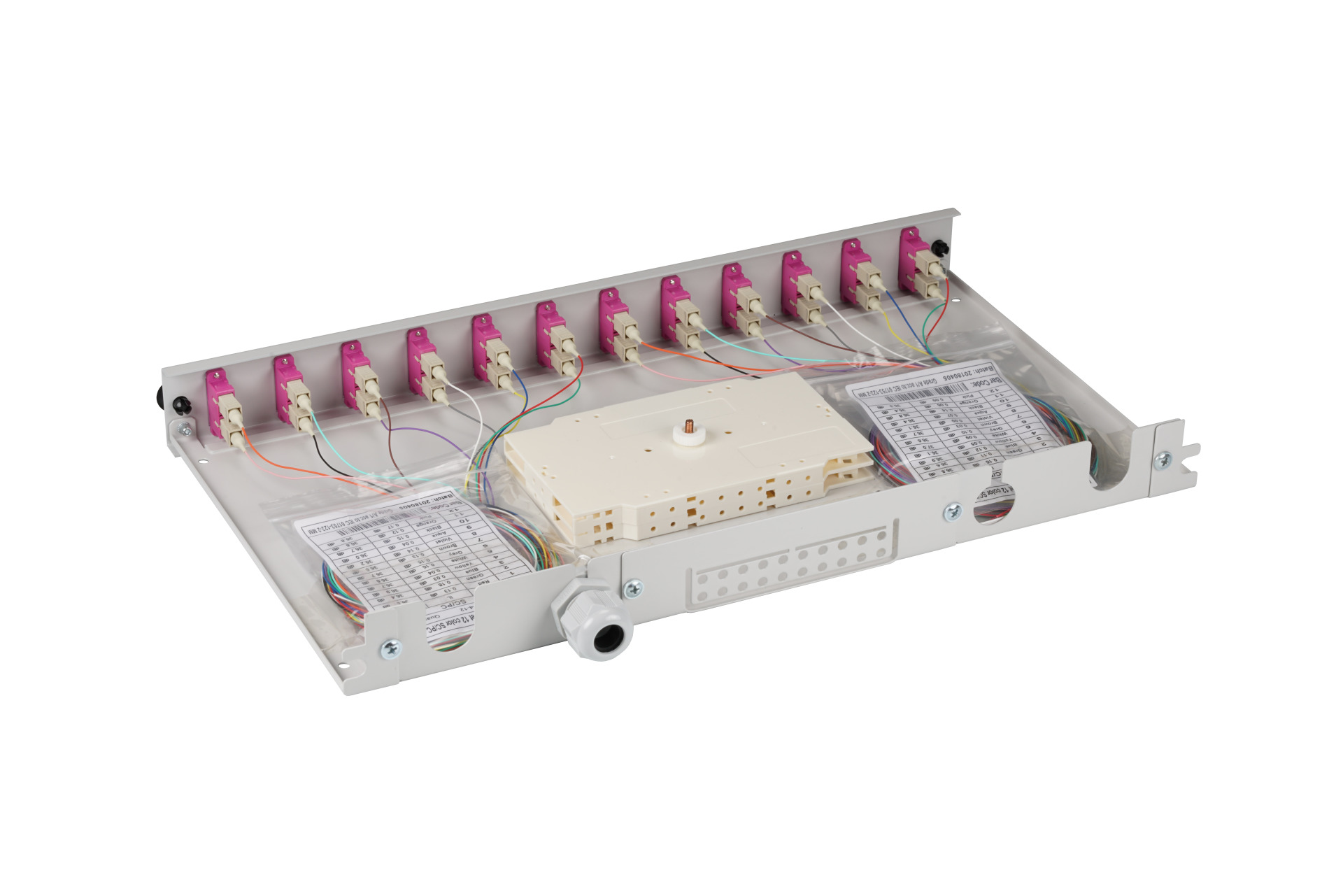

Splice box SC 50/125µ OM4 extendable
Splice box SC 50/125µ OM4 extendable, 12 pigtails/ 6 adapters
Item number:
B71203L12OM4
Product information for Splice box SC 50/125µ OM4 extendable, 12 pigtails/ 6 adapters
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
and coloured pigtails
metal housing depth adjustablecable entries at the rear
Including:
1 x PG16
6 x self adhesive fiber tray
Additionally with 12 pigtails: 1 x crimp splice protection holder, 2 x shrink splice protection holder, 1 x splice cassette
Additionally with 24 pigtails: 2 x crimp splice protection holder, 4 x shrink splice protection holder, 2 x splice cassette
Additionally with 48 pigtails: 4 x crimp splice protection holder, 8 x shrink splice protection holder , 4 x splice cassette
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | SC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Note: | vertical |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Colour | Type of connector external | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203L12OM4 | Splice box SC 50/125µ OM4 extendable, 12 pigtails/ 6 adapters | 12 | 6 | grey | SC-Duplex | 12 x SC | 7035 | SC-Duplex | violett | |
| B71203L24OM4 | Splice box SC 50/125µ OM4 extendable, 24 pigtails /12 adapters | 12 | 12 | grey | SC-Duplex | 24 x SC | 7035 | SC-Duplex | violett |
