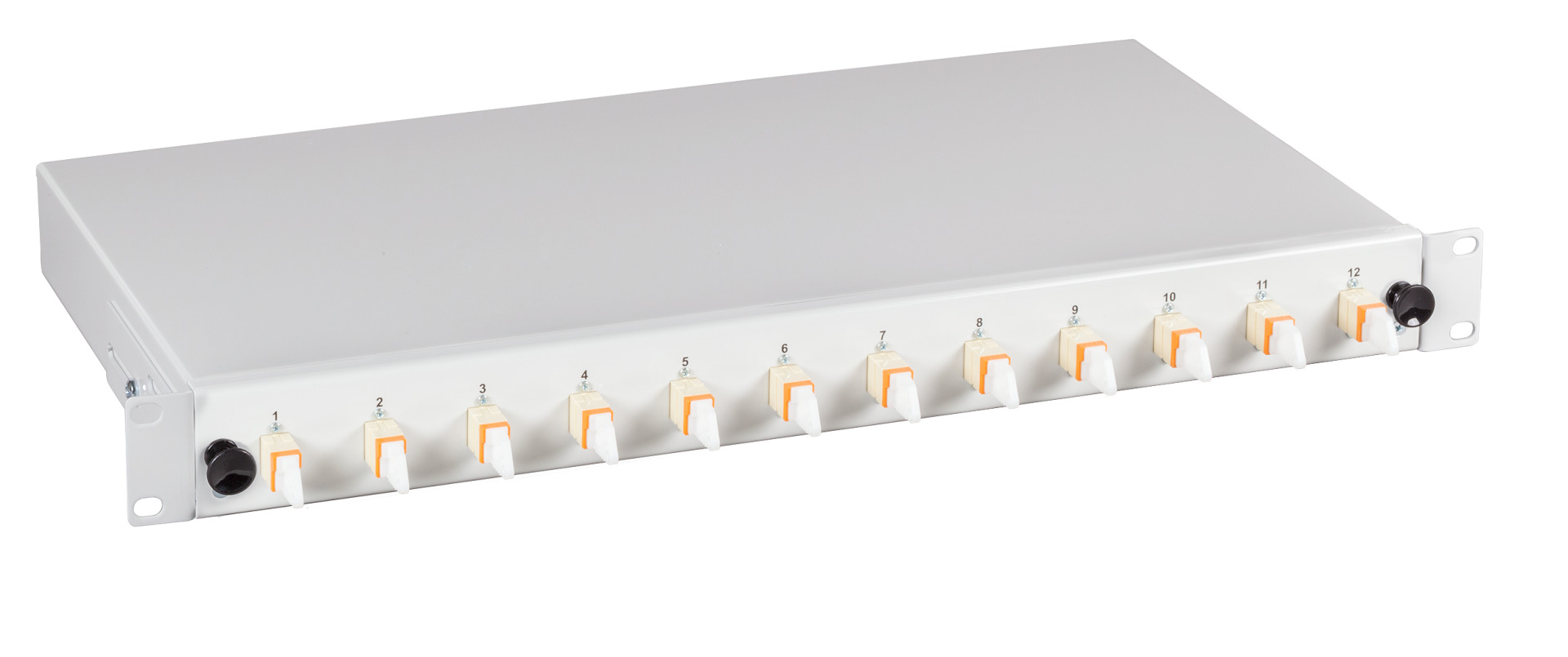

Splicebox sliding unit, with E2000® plastic adapter and pigtails, OM4
Splicebox E2000® 50/125µ OM4 extendable 24 Pigtails/24 Adapter
Item number:
B71503.24OM4
EAN no.:
4049759064518
Product information for Splicebox E2000® 50/125µ OM4 extendable 24 Pigtails/24 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | E2000® |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |

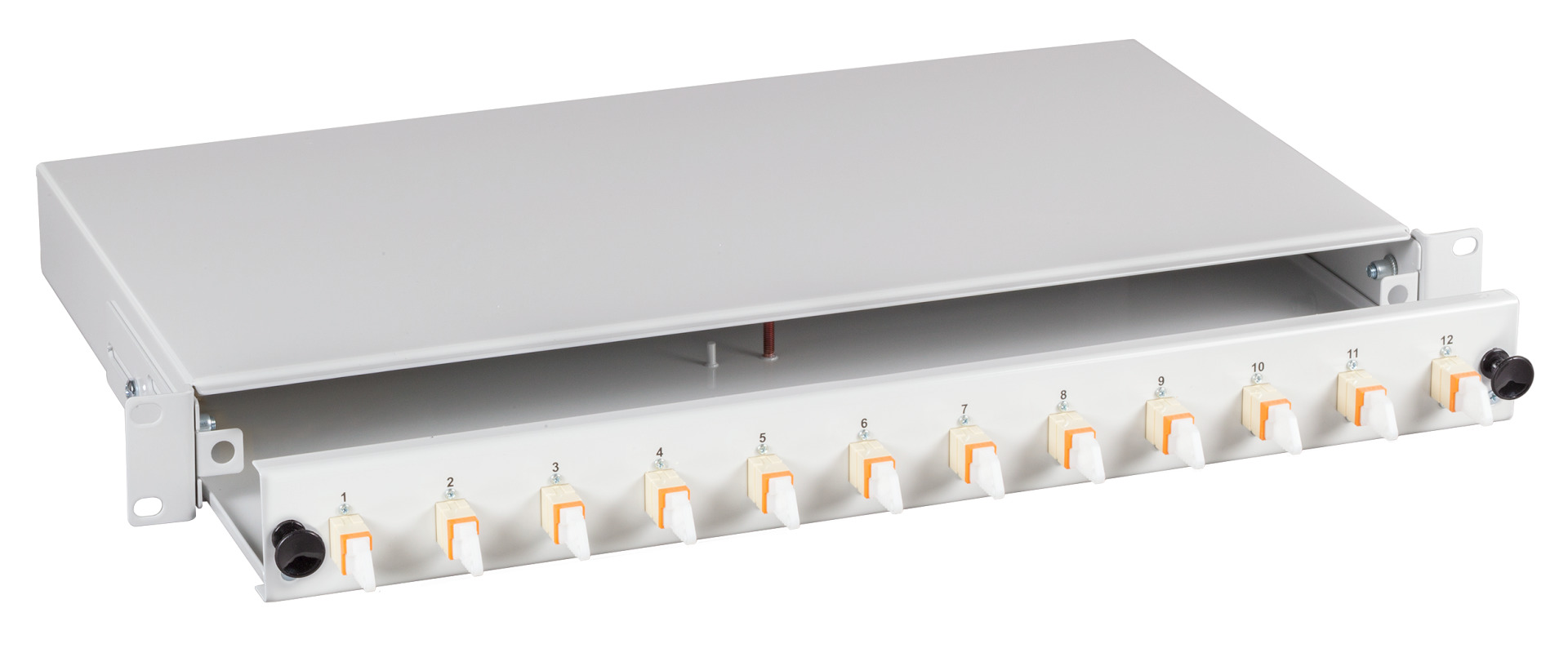

| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | Colour | Type of connector external | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71503.6OM4 | Splicebox E2000® 50/125µ OM4 extendable 6 Pigtails/6 Adapter | 12 | grey | E2000® | 6 | 6 x E2000® | 7035 | E2000® | beige | |
| B71503.12OM4 | Splicebox E2000® 50/125µ OM4 extendable 12 Pigtails/12 Adapter | 12 | grey | E2000® | 12 | 12 x E2000® | 7035 | E2000® | beige | |
| B71503.24OM4 | Splicebox E2000® 50/125µ OM4 extendable 24 Pigtails/24 Adapter | 24 | grey | E2000® | 24 | 24 x E2000® | 7035 | E2000® | beige |
