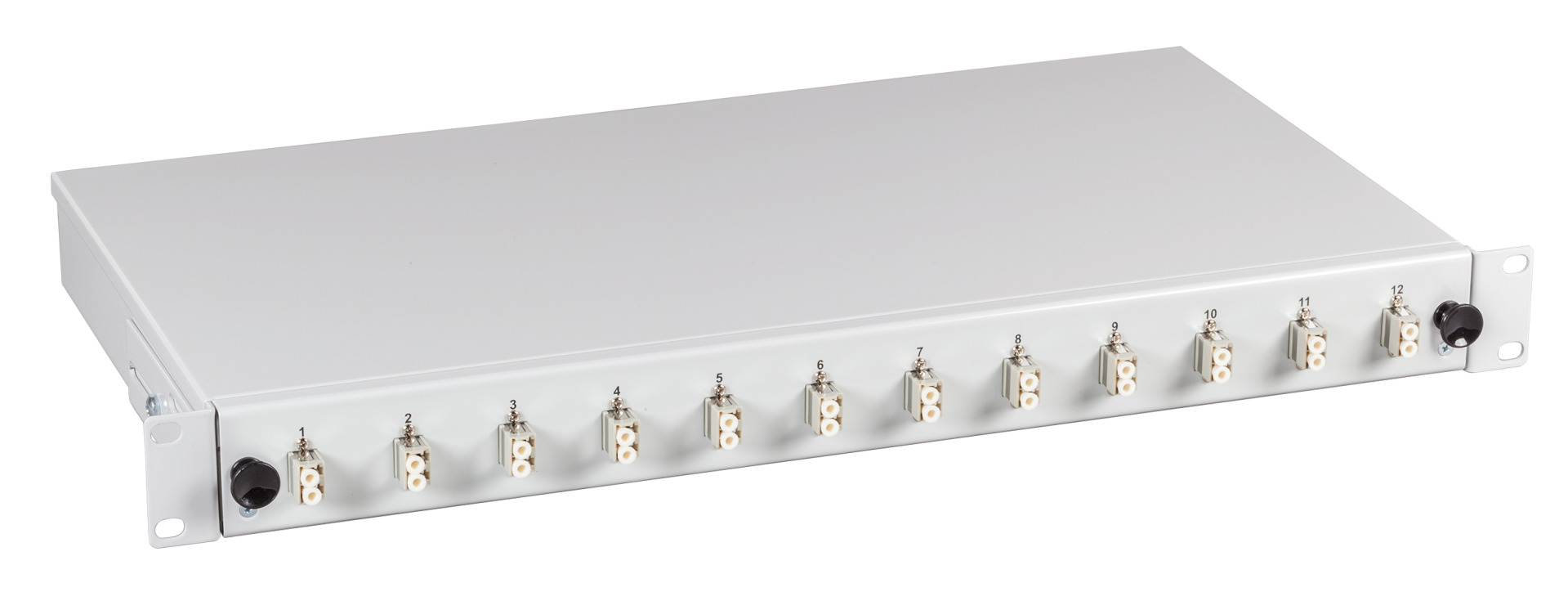

Partially Assembled Splice Boxes LC-Duplex plastic adapter, non-sliding version, Singlemode
Splicebox partially assembled LC SM not extendable 24 Adapter
Item number:
B60922.24
EAN no.:
4049759172831
Product information for Splicebox partially assembled LC SM not extendable 24 Adapter
Partly assembled splice box with adapters
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing not sliding unit
front panel screwed
metal adapters
cable entries at the rear
per 12 adapters 1 splice cassette with 1 splice holder
suitable up to 4 splice cassettes
metal housing not sliding unit
front panel screwed
metal adapters
cable entries at the rear
Technical properties
Adapters: | LC |
---|---|
Depth: | 244.0 mm |
Fibre type: | Single mode 9/125 |
Height: | 44.5 mm |
Mounting method: | 482.6 mm (19 inch) mounting |
Number of height units: | 1 U |
Sliding: | non sliding version |
Width: | 483.0 mm |
With front plate: | True |
With housing: | True |
With pigtails: | False |
Variants
Item no. | Name | Suitable for number of couplings/adapters | Type of connector external | Colour | With number of couplings/adapters | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
---|---|---|---|---|---|---|---|---|---|
B60922.6 | Splicebox partially assembled LC SM not extendable 6 Adapter | 12 | LC-Duplex | grey | 6 | 7035 | LC-Duplex | metall | |
B60922.12 | Splicebox partially assembled LC SM not extendable 12 Adapter | 12 | LC-Duplex | grey | 12 | 7035 | LC-Duplex | metall | |
B60922.24 | Splicebox partially assembled LC SM not extendable 24 Adapter | 24 | LC-Duplex | grey | 24 | 7035 | LC-Duplex | metall | |
B60922TS.6 | Splicebox bk partially assembled LC SM not extendable 6 Adapter | 12 | LC-Duplex | black | 6 | 9005 | LC-Duplex | metall |
