Splicebox sliding unit with SC-Duplex plastic adapter and pigtails, OM5

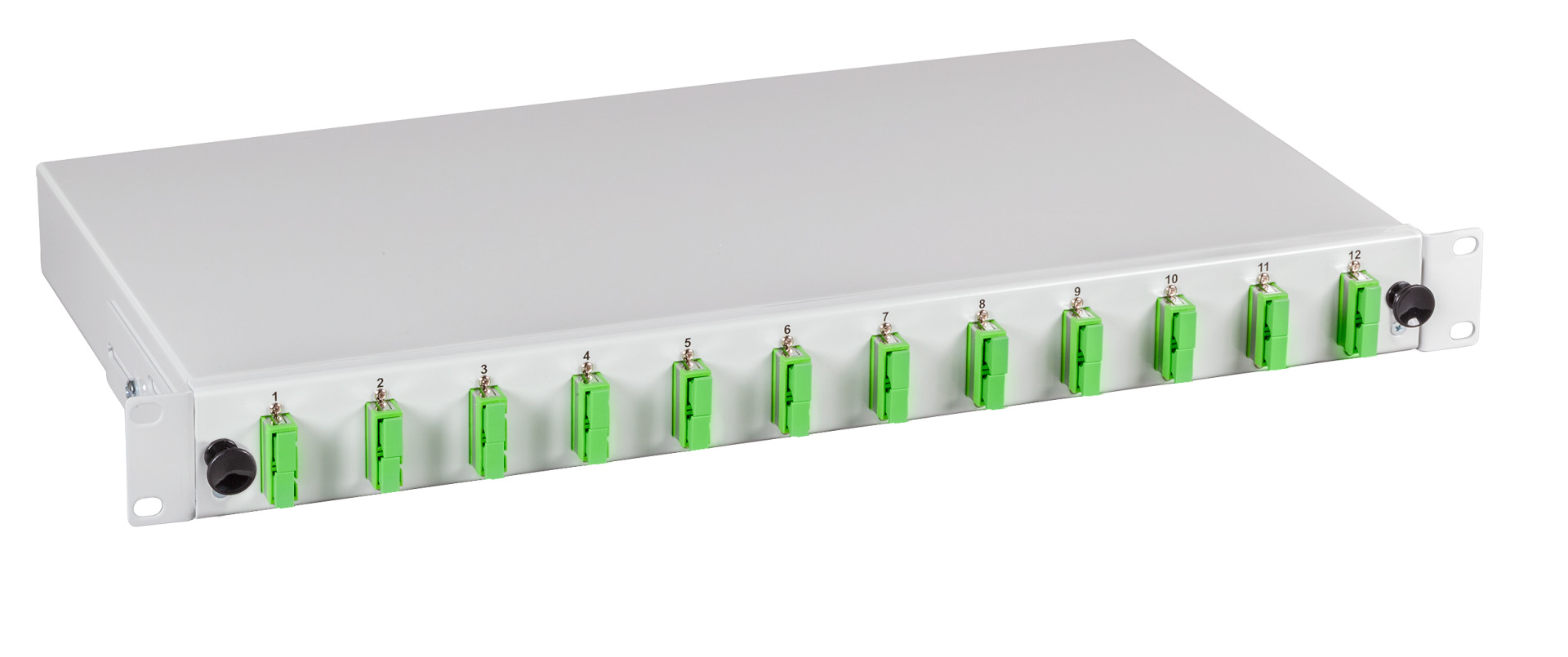

Splicebox SC 50/125µ OM5 extendable 24 Pigtails/12 Adapter
Item number:
B71203.24OM5
EAN no.:
4049759191955
Product information for Splicebox SC 50/125µ OM5 extendable 24 Pigtails/12 Adapter
• 1 splice cassette with 1 splice holder each per 12 fiber pigtails
• 6 x Self adhesive fiber tray
• Up to 4 splice cassettes adaptable
• Front panel screwed
• Depth adjustable
• Cable entry backsided, with 1 x PG16 gland
• Coloured Adapter
• 6 x Self adhesive fiber tray
• Up to 4 splice cassettes adaptable
• Front panel screwed
• Depth adjustable
• Cable entry backsided, with 1 x PG16 gland
• Coloured Adapter
Technical properties
| Adapters: | SC |
|---|---|
| Depth: | 244.0 mm |
| Fibre class: | OM5 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Suitable for number of module inserts: | 4 |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Colour | Type of connector external | Suitable for number of couplings/adapters | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71203.12OM5 | Splicebox SC 50/125µ OM5 extendable 12 Pigtails/6 Adapter | grey | SC | 12 | 6 | 12 x SC | 7035 | SC-Duplex | limettengrün | |
| B71203.24OM5 | Splicebox SC 50/125µ OM5 extendable 24 Pigtails/12 Adapter | grey | SC | 24 | 12 | 24 x SC | 7035 | SC-Duplex | limettengrün | |
| B71203.48OM5 | Splicebox SC 50/125µ OM5 extendable 48 Pigtails/24 Adapter | grey | SC | 48 | 24 | 48 x SC | 7035 | SC-Duplex | limettengrün |
