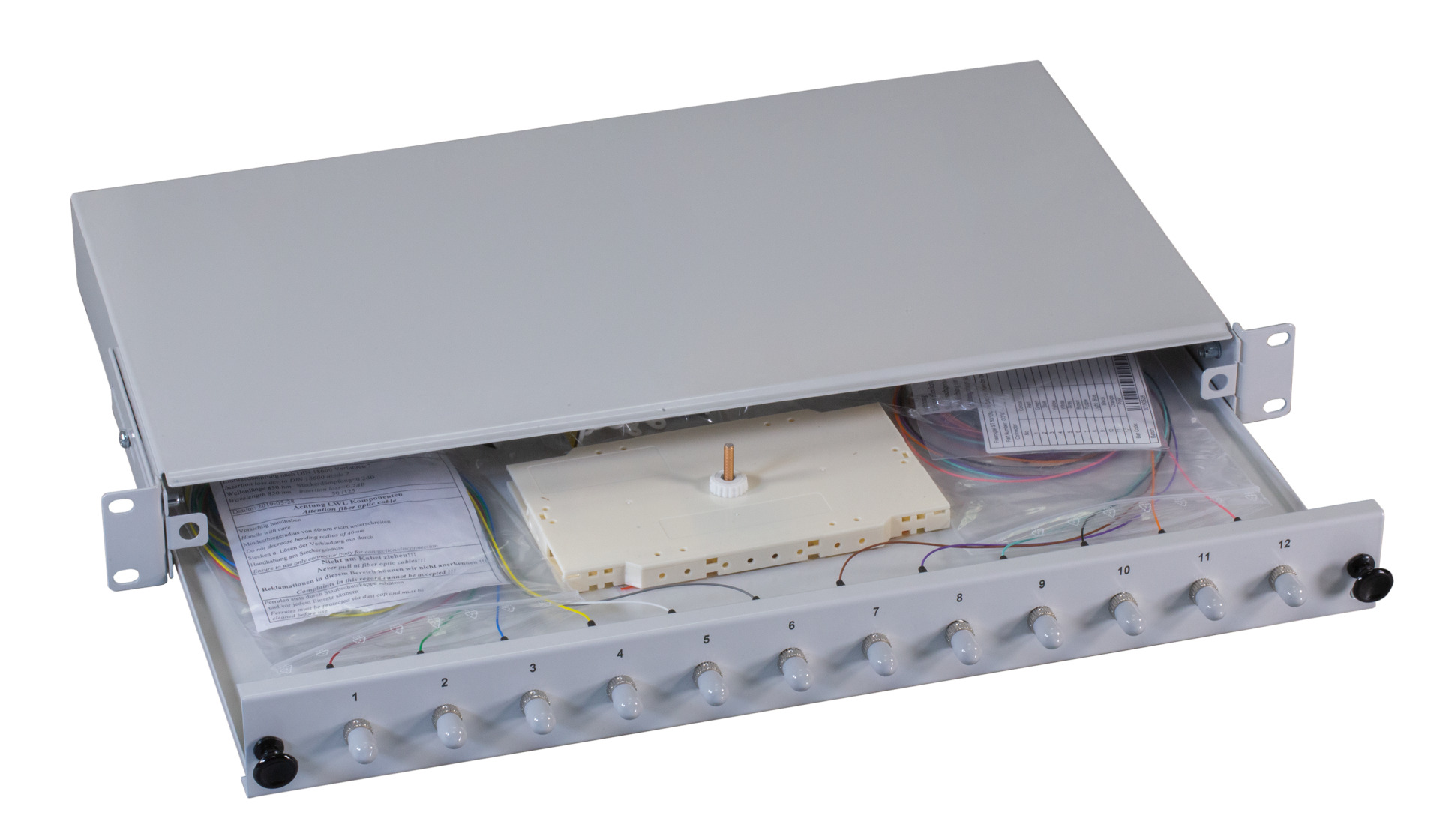

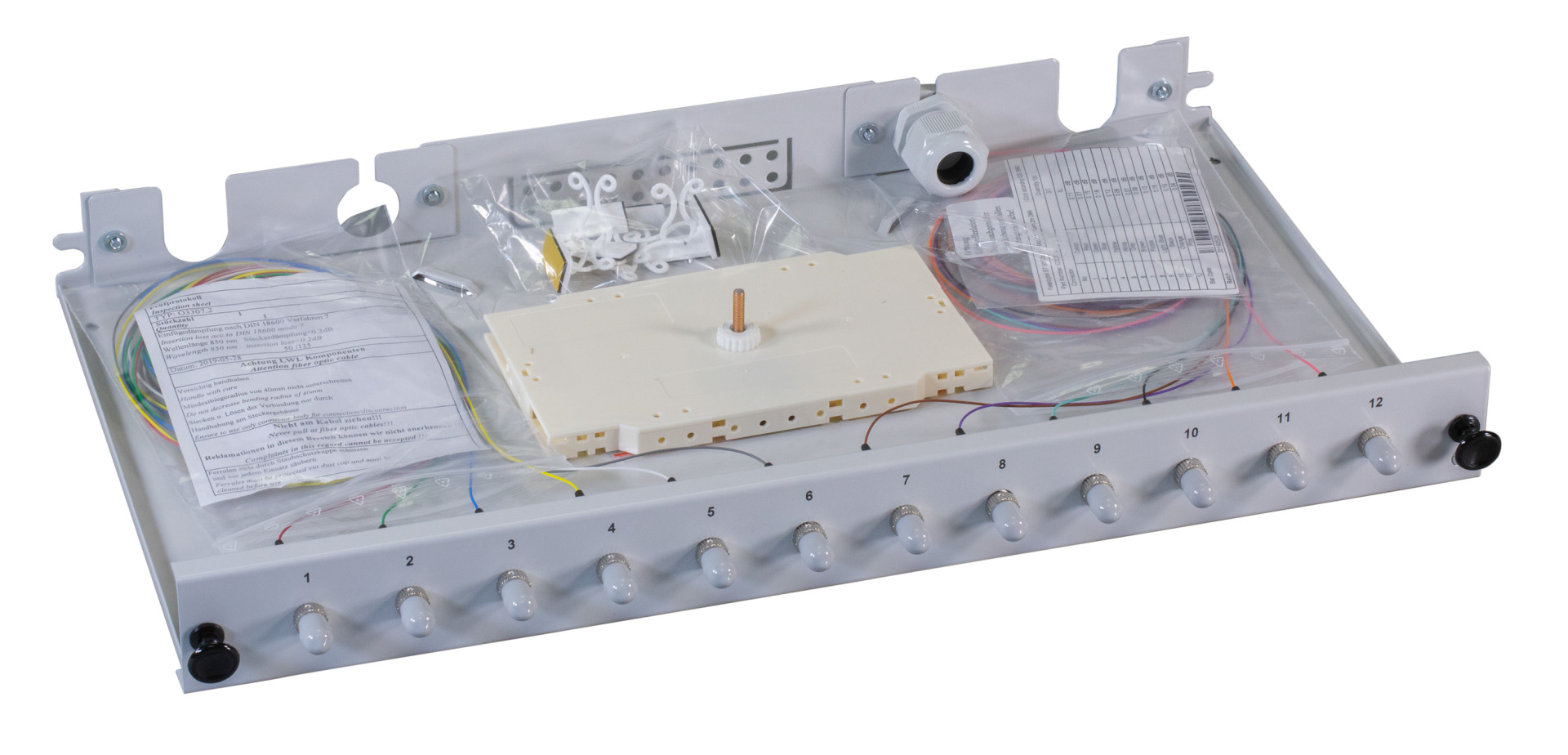

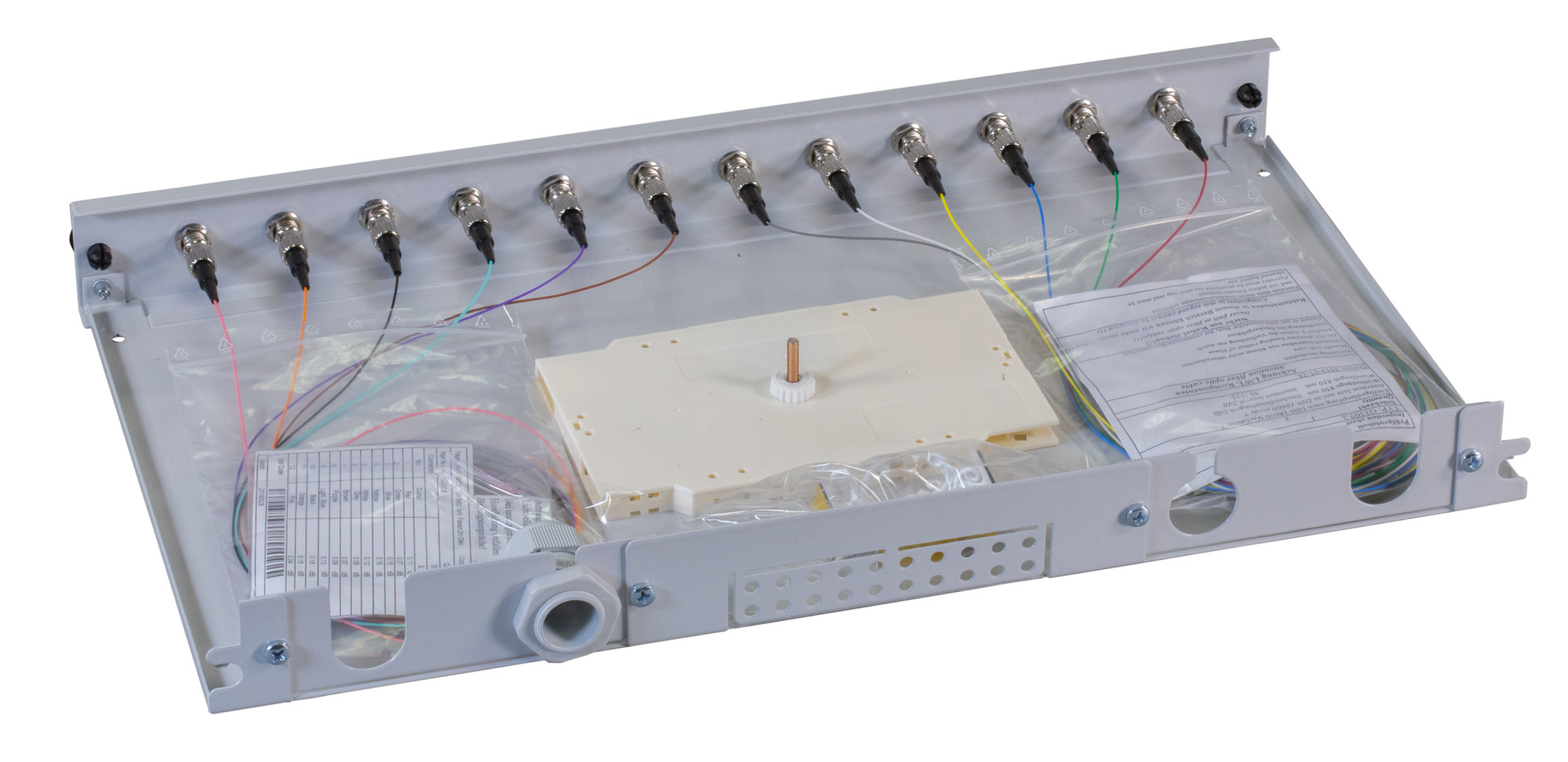

Splicebox sliding unit, with ST metal adapter and pigtails, OM3
Splicebox ST 50/125µ OM3 extendable 12 Pigtails/12 Adapter
Item number:
B71006.12OM3
EAN no.:
4049759041779
Product information for Splicebox ST 50/125µ OM3 extendable 12 Pigtails/12 Adapter
completely assembled splice box with adapters
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Metall adapter |
|---|---|
| Adapters: | ST |
| Depth: | 244.0 mm |
| Fibre class: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Colour | Type of connector external | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B71006.6OM3 | Splicebox ST 50/125µ OM3 extendable 6 Pigtails/6 Adapter | 12 | 6 | grey | ST | 6 x ST | 7035 | ST | metall | |
| B71006.12OM3 | Splicebox ST 50/125µ OM3 extendable 12 Pigtails/12 Adapter | 12 | 12 | grey | ST | 12 x ST | 7035 | ST | metall | |
| B71006.24OM3 | Splicebox ST 50/125µ OM3 extendable 24 Pigtails/24 Adapter | 24 | 24 | grey | ST | 24 x ST | 7035 | ST | metall | |
| B71006TS.6OM3 | Splicebox bk ST 50/125µ OM3 extendable 6 Pigtails/6 Adapter | 12 | 6 | black | ST | 6 x ST | 9005 | ST | metall |
