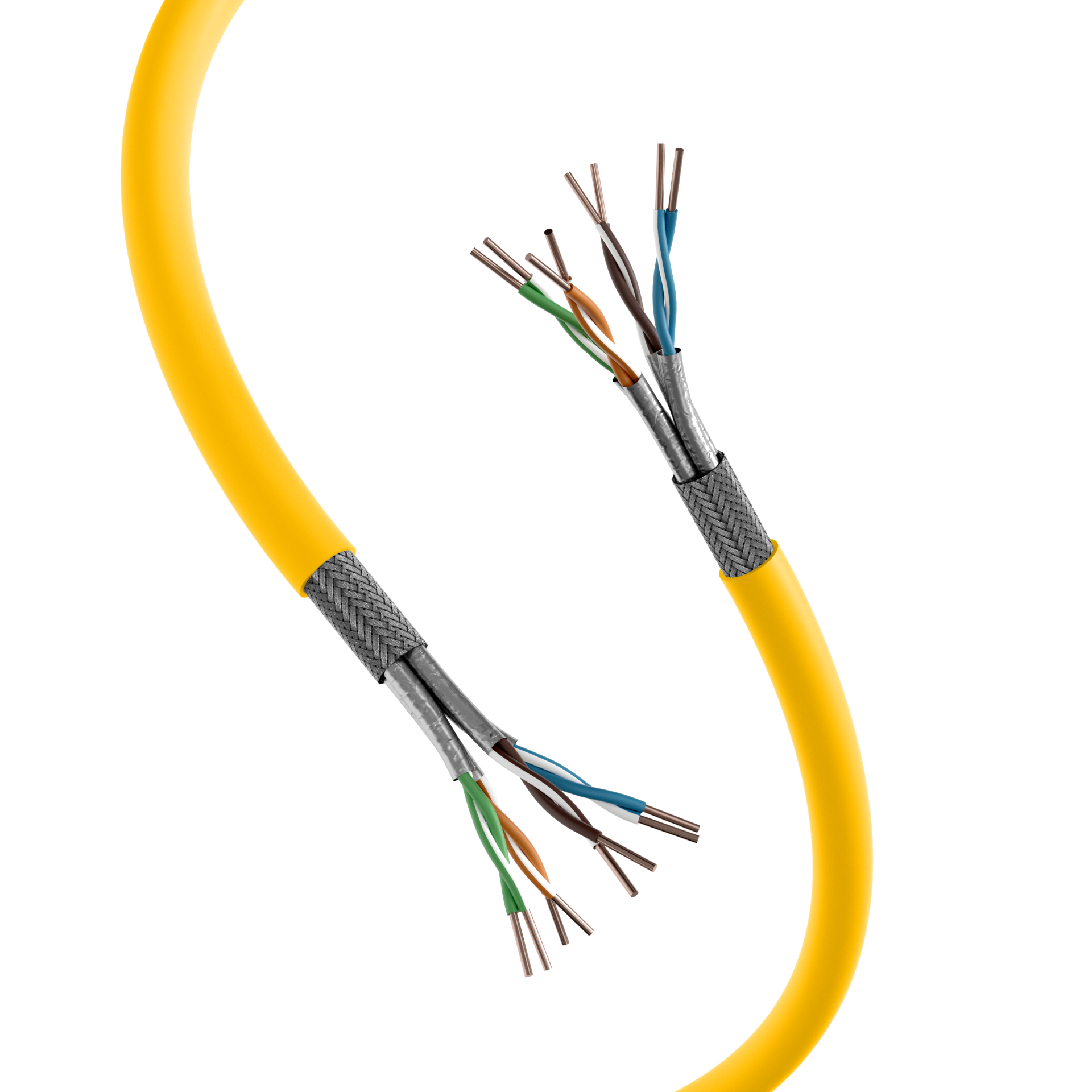

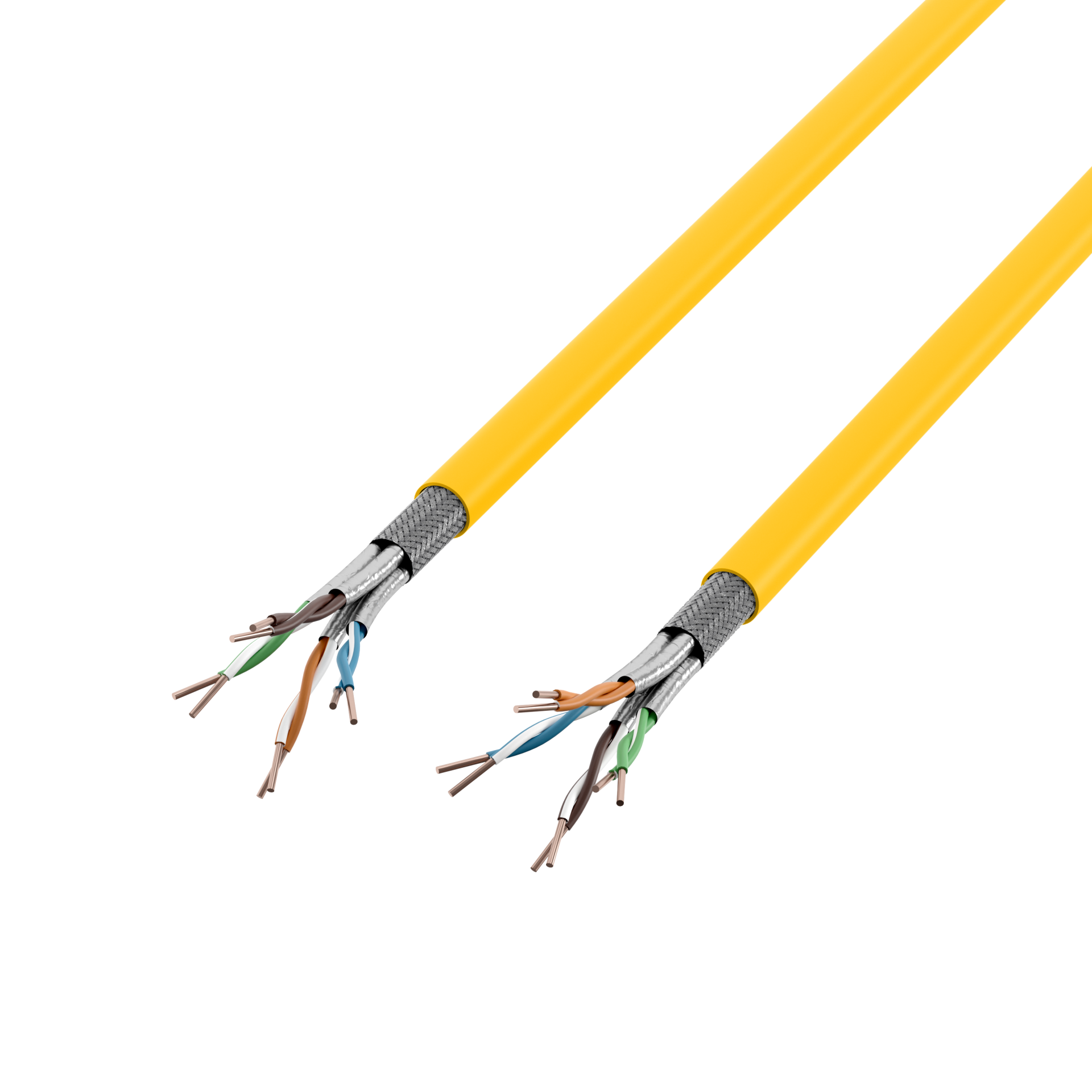

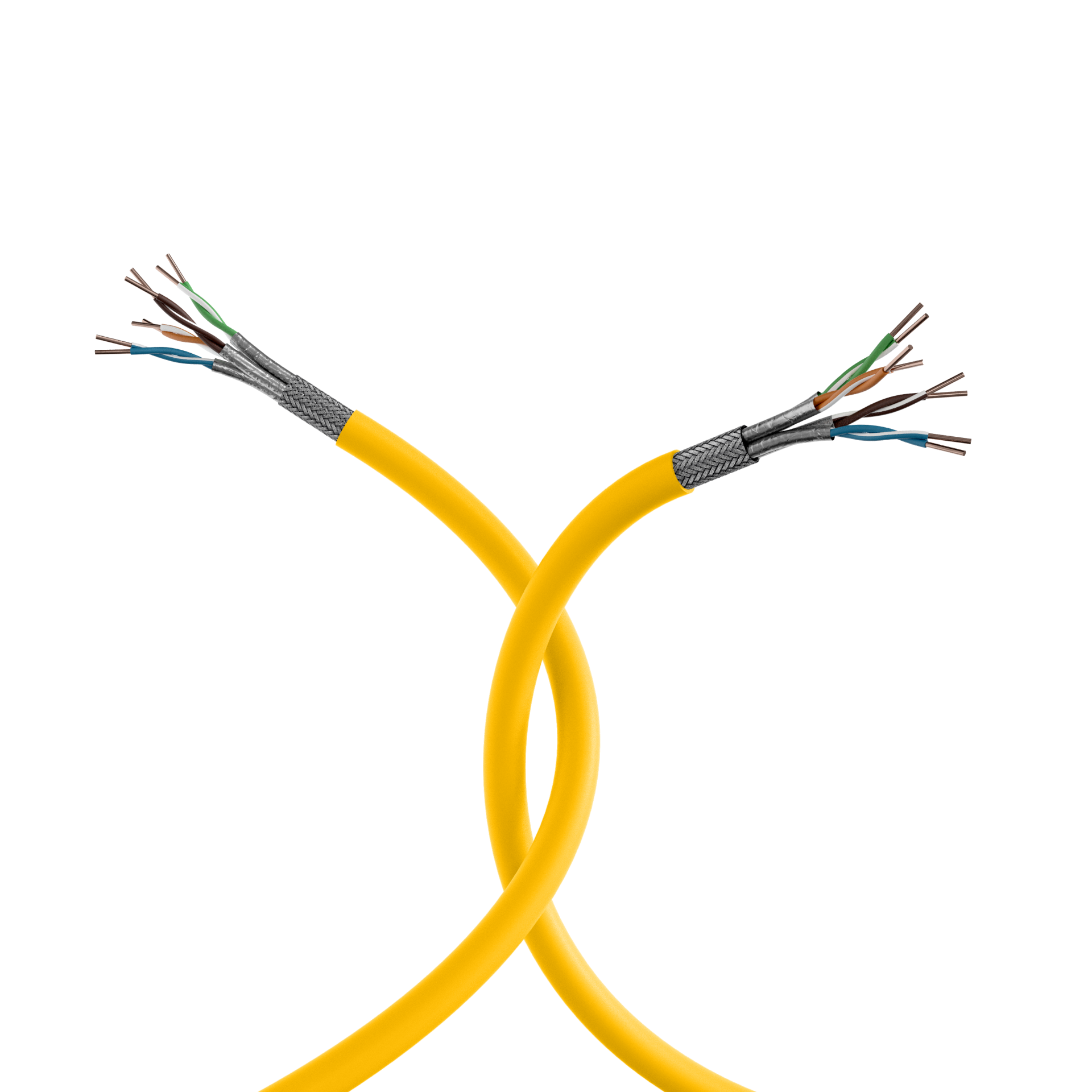

Cat.8.2 Installation Cable S/FTP 2000MHz AWG22
UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz,LSHF-FR 500m
Item number:
99827.500
EAN no.:
8717511628280
Product information for UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz,LSHF-FR 500m
The installation cable 99827.x is constructed for transmissions up to 2000 MHz and exceeds with the electrical transmission properties the requirements of the category 8 and lower. With this cable transmission rates up to 40 GBit according to IEEE 802.3 are possible. Application: Primary (campus), Secondary (riser), Tertiary (horizontal)
Technical properties
| AWG-size: | 22/1 |
|---|---|
| Bending radius (dynamic): | 8 x OD |
| Bending radius (static): | 4 x OD |
| Cable: |
EN 50288-9-1 IEC 61156-5 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Capacity to earth: | nom. 43 nF/km |
| Category: | 8.2 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | 90 dB |
| Coupling attenuation Type: | Type 1 |
| Delay skew: | 20 ns/100m |
| Diameter conductor: | 0.64 mm |
| Euro class: | Dca |
| Flame retardant: | According to IEC/EN 60332-3-24 |
| Halogen free: | acc. EN 60754-1/2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket Material: | FRNC-C |
| Loop resistance: | 130 Ohm/km |
| Low smoke: | acc. EN 61034-2 |
| Low smoke (according to EN 61034-2): | True |
| Max. Freuqency: | 2000MHz MHz |
| NVP value: | 73 % |
| Permitted cable outer temperature after assembling without vibration: | -20 – 60 °C |
| Permitted cable outer temperature during assembling/handling: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 1 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | 5 mOhm/m |
| Transfer impedance at 10MHz: | 5 mOhm/m |
| Transfer impedance at 30MHz: | 10 mOhm/m |
| Transfer impedance at 100MHz: | 20 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 40Gbit |
| UV resistance: | no |
Variants
| Item no. | Name | RAL colour | Number of cores | Colour outer sheath | Type | Length | Cu-Zahl | Gewicht | Max. Zugkraft | Außendurchmesser ca. | Brandlast | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99827.100 | UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz, LSHF-FR 100m | RAL1021 | 8 | yellow | simplex | 100.0 m | 47 kg/km | 80 kg/km | 340 N | 8,5 mm | 674 MJ/km | |
| 99827.500 | UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz,LSHF-FR 500m | RAL1021 | 8 | yellow | simplex | 500.0 m | 47 kg/km | 80 kg/km | 340 N | 8,5 mm | 674 MJ/km | |
| 99827.1 | UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz, LSHF-FR | RAL1021 | 8 | yellow | simplex | 1.0 m | 47 kg/km | 80 kg/km | 340 N | 8,5 mm | 674 MJ/km |
