USB Type-C - DVI Cable, 1080P

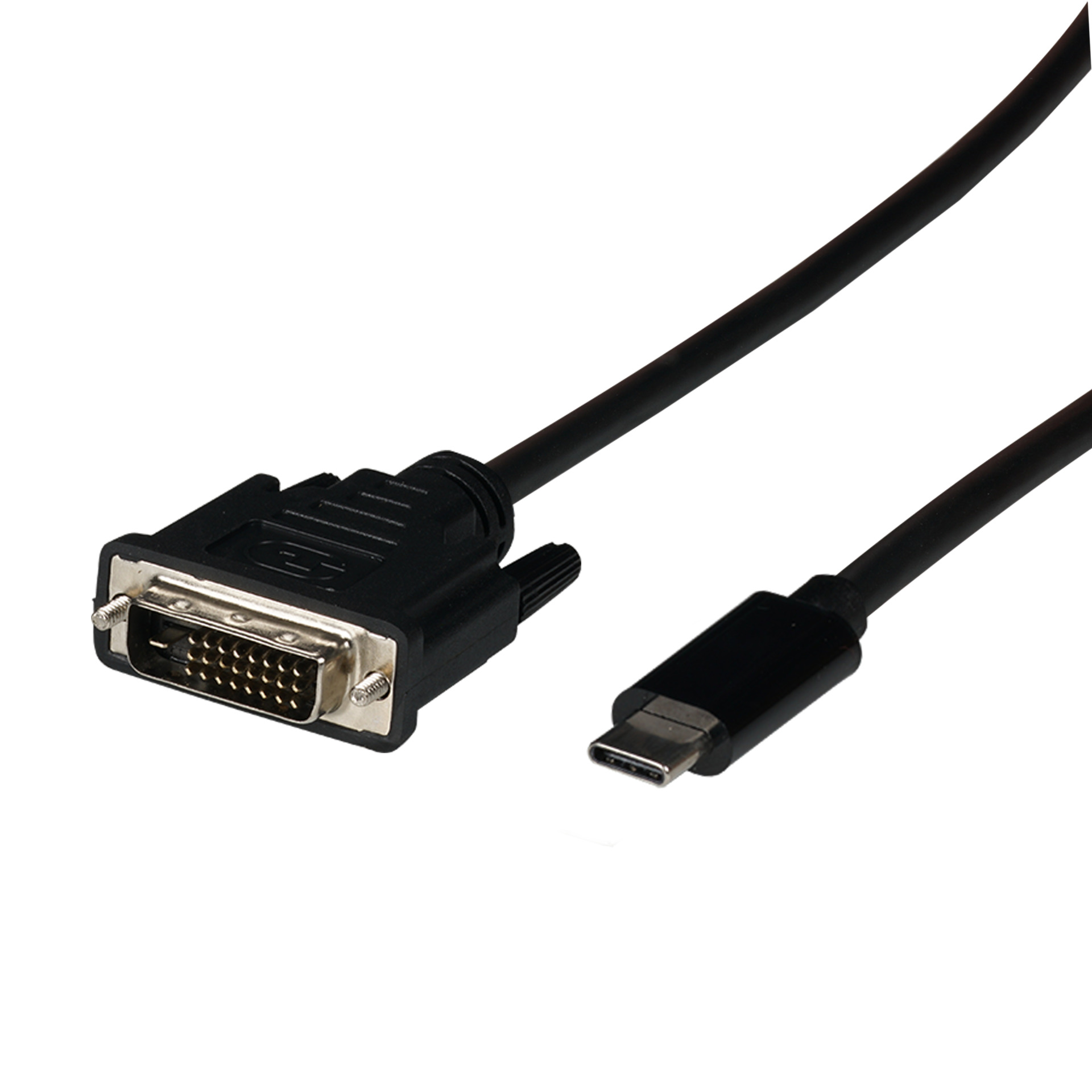

USB Type-C - DVI-D Cable, USB Type-C male - DVI-D male, 1080P, 2m
Item number:
EBUSBC-DVIK.2
EAN no.:
4049759272012
Product information for USB Type-C - DVI-D Cable, USB Type-C male - DVI-D male, 1080P, 2m
Type-C to DVI connection cable for connection between a USB Type-C device like PC/Notebook/Tablet to a DVI display
Support DP1.2 Alternate mode with max 1080P resolution and HDCP
Thunderbolt 3 compatible
Support DP1.2 Alternate mode with max 1080P resolution and HDCP
Thunderbolt 3 compatible
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 4.95 Gbit/s |
| Beding radius (dynamic/static): | 39 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | active |
| Chip: | True |
| Color depth: | 8-Bit |
| Compliant with: | TV/Monitor/smartphone/tablets/gaming monitor/laptop/ |
| Compressions technologies: | Dolby TrueHD |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | Nickel-plated |
| DSC: | False |
| Dust cover: | true |
| Enhanced Color: | Deep Color |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC+ABS |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 100 |
| Max. resolution: | 1920x1080@60HZ. |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | triple |
| Operating temperature: | 0 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 25mm x 12.2mm x 6.4mm |
| Plug dimensions Side 2: | 50.6mm x 41.6mm x 16.5mm |
| Scope of delivery: | 1x USB-C to DP cable |
| Shielded: | True |
| Speed: | 4,95 Gbit/s |
| Storage Temperature: | -40 – 70 °C |
| Supported protocols / functions: | DP Alternate Mode |
| Supported video standards: | 1920x1200 |
| Tensile strength (short/long): | 29,4 N |
| Thunderbolt compatible: | Thunderbolt 3 |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | DVI-D 24+1 |
| Type of locking: | Snap-In Locking |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | HDMI Version 1.2 |
| Warranty: | 12 months |
| With termination resistor: | True |
| eARC: | False |
Safety instructions
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
