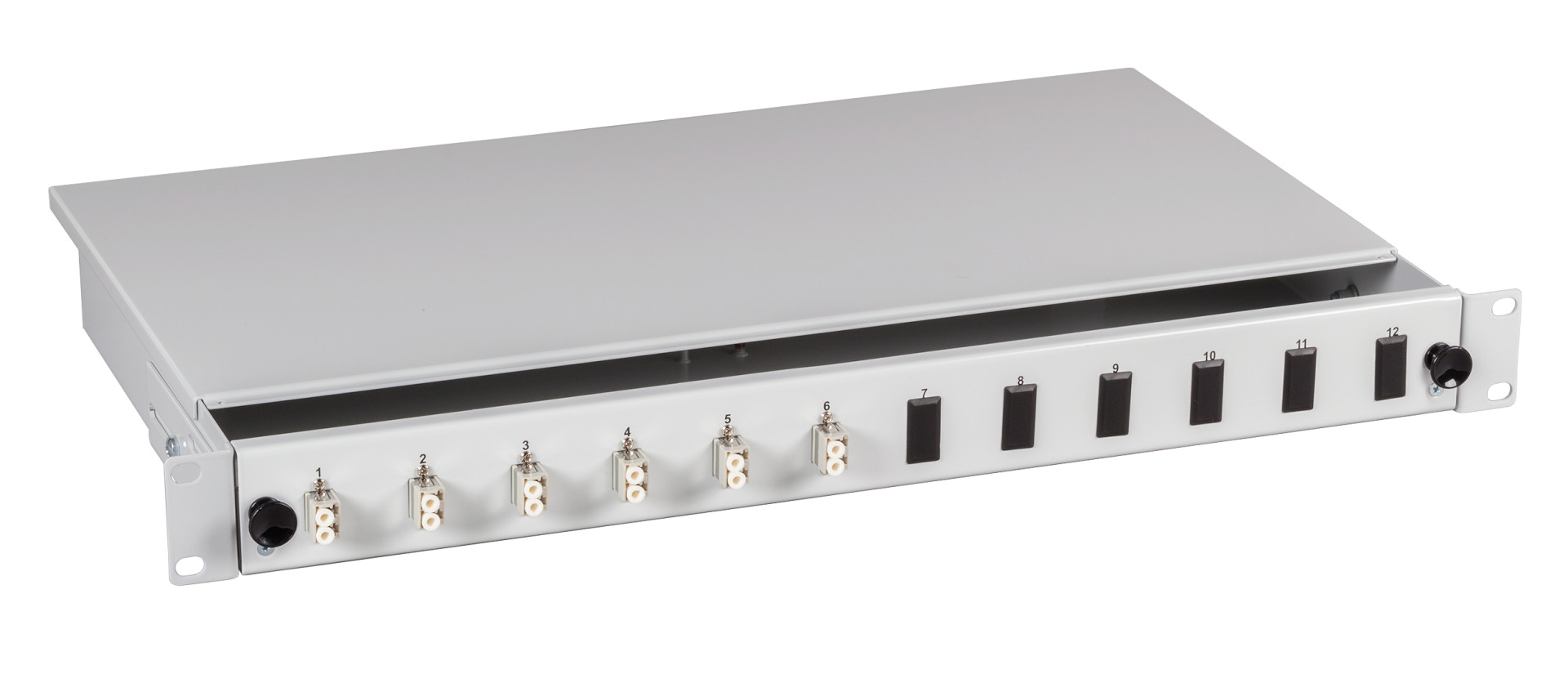

Splicebox with LC-Duplex plastic adapter and pigtails, OS2
Splicebox LC 9/125µ OS2 not extendable 24 Pigtails/12 Adapter
Item number:
B70921.24
EAN no.:
4049759110062
Product information for Splicebox LC 9/125µ OS2 not extendable 24 Pigtails/12 Adapter
completely assembled splice box with adapters and coloured pigtails
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
metal housing depth adjustable
cable entries at the rear, incl. 1 x PG16
6 x self adhesive fiber tray
Special assembly possible at short notice!
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OS2 acc. to ITU-T G.652.D |
| Fibre type: | Single mode 9/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | not stripped |
| Sliding: | non sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Suitable for number of couplings/adapters | With number of couplings/adapters | Type of connector external | Pigtail | Colour | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| B70921.12 | Splicebox LC 9/125µ OS2 not extendabel 12 Pigtails/6 Adapter | 12 | 6 | LC-Duplex | 12 x LC | grey | 7035 | LC-Duplex | blau | |
| B70921.24 | Splicebox LC 9/125µ OS2 not extendable 24 Pigtails/12 Adapter | 12 | 12 | LC-Duplex | 24 x LC | grey | 7035 | LC-Duplex | blau | |
| B70921.48 | Splicebox LC 9/125µ OS2 not etendable 48 Pigtails/24 Adapter | 24 | 24 | LC-Duplex | 48 x LC | grey | 7035 | LC-Duplex | blau | |
| B70921TS.12 | Splicebox bk LC 9/125µ OS2 not extendbale 12 Pigtails/6 Adapter | 12 | 6 | LC-Duplex | 12 x LC | black | 9005 | LC-Duplex | blau | |
| B70921TS.24 | Splicebox bkLC 9/125µ OS2 not extendbable 24 Pigtails/12 Adapter | 12 | 12 | LC-Duplex | 24 x LC | black | 9005 | LC-Duplex | blau | |
| B70921TS.48 | Splicebox bk LC 9/125µ OS2 not extendable 48 Pigtails/24 Aapters | 24 | 24 | LC-Duplex | 48 x LC | black | 9005 | LC-Duplex | blau |
